Product code: N/A
paket 8 kamera dahua
Paket 8 Kamera Dahua 2MP 1080 HD Original price was: Rp 8,000,000.Current price is: Rp 7,500,000.
IP Camera 1MP Hikvision DS-2CV2Q01EFD-IW Rp 920,000

Paket 2 Kamera Dahua 2MP HD 1080

Rp 2,100,000

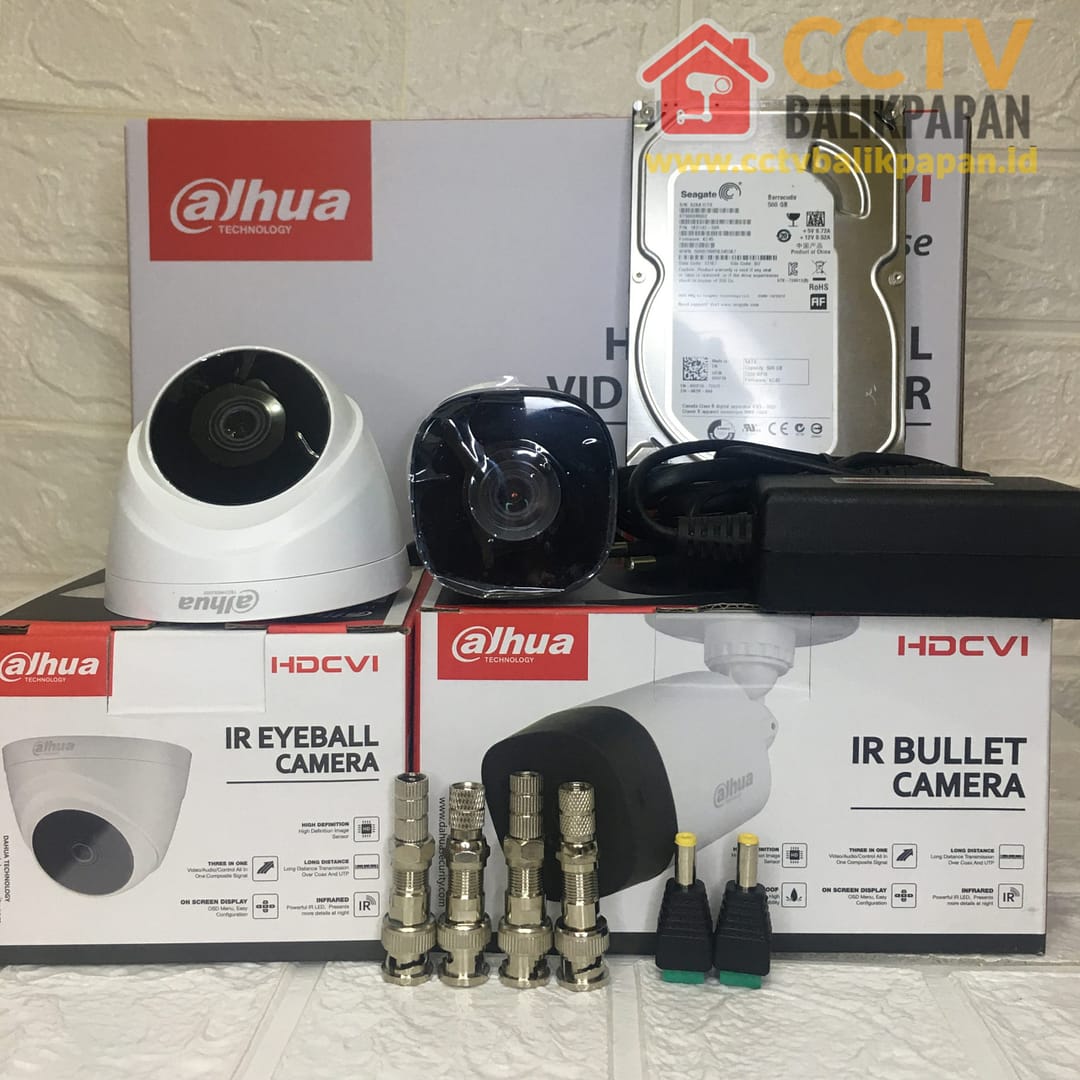

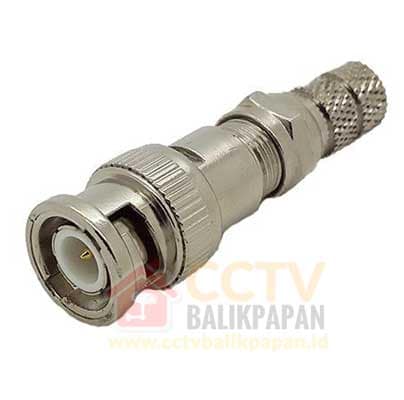

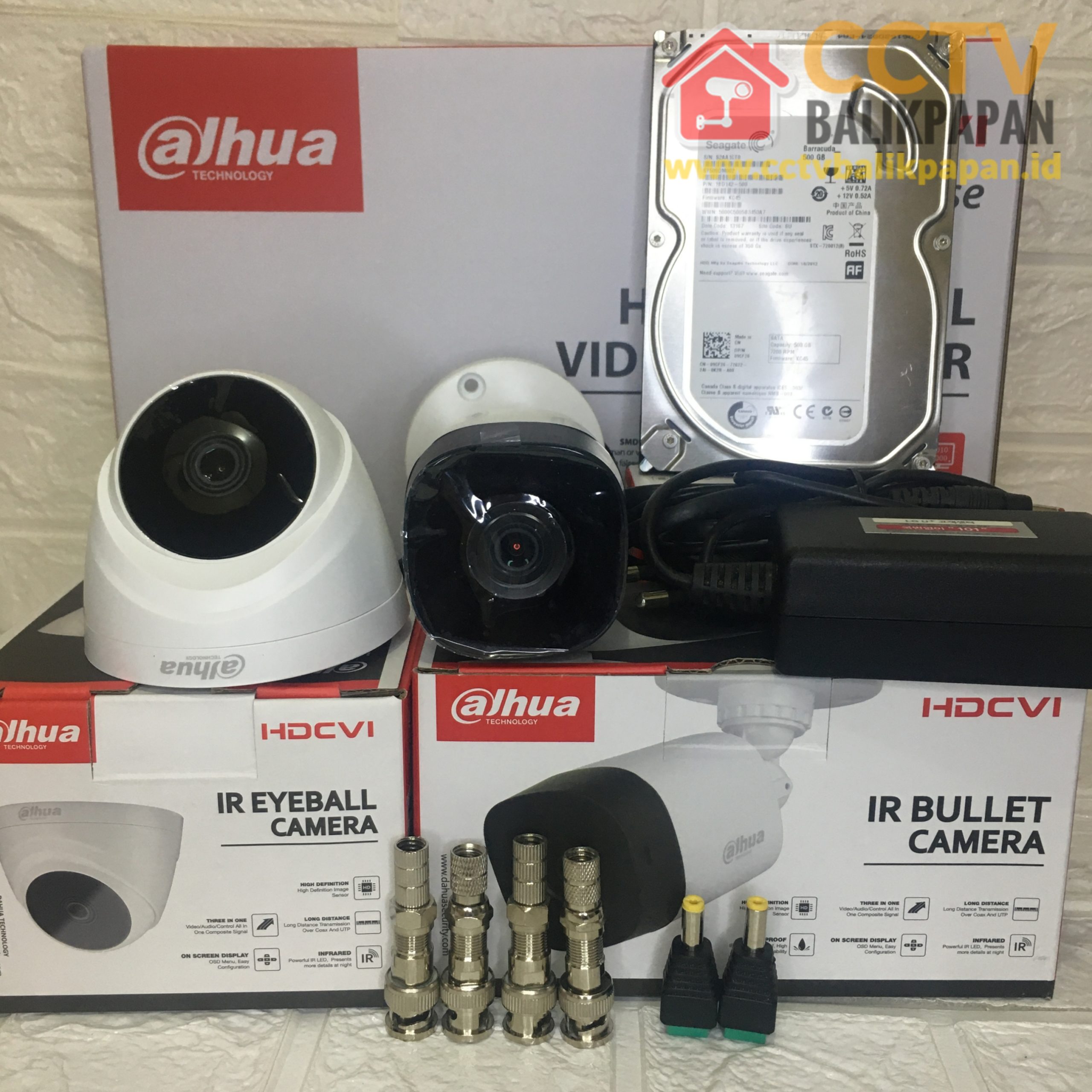

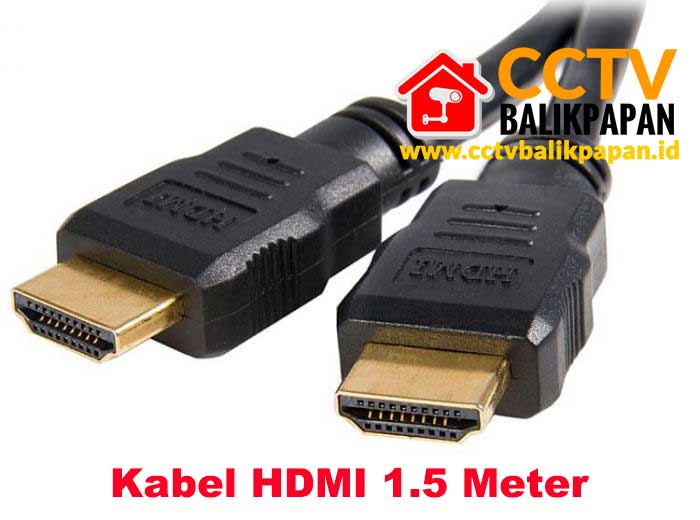

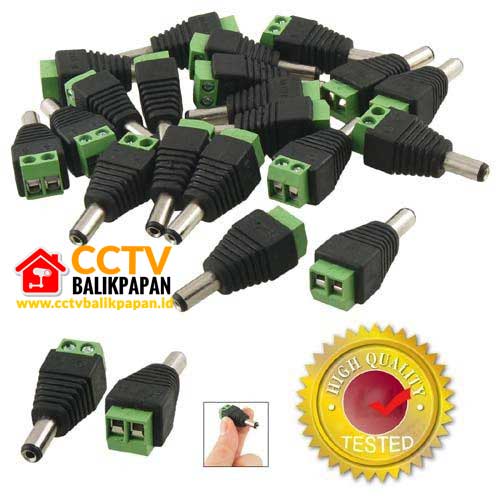

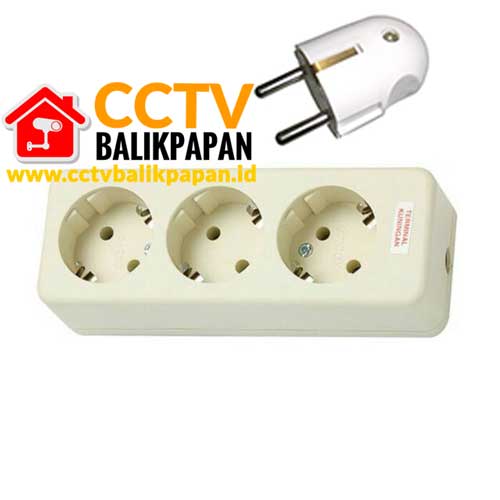

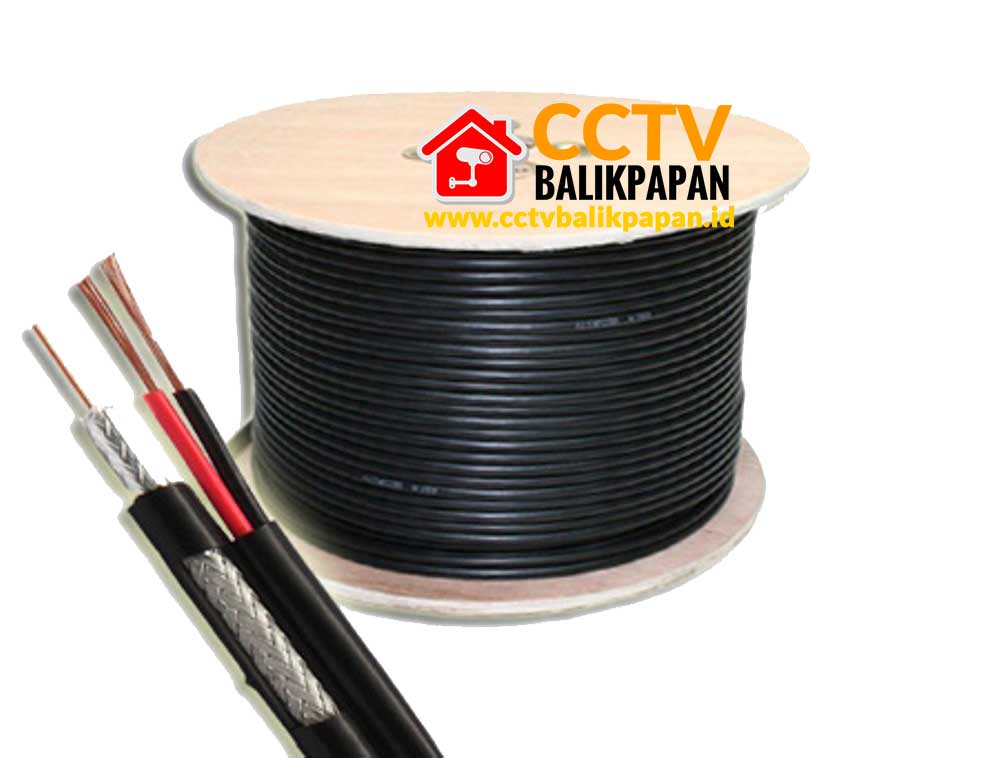

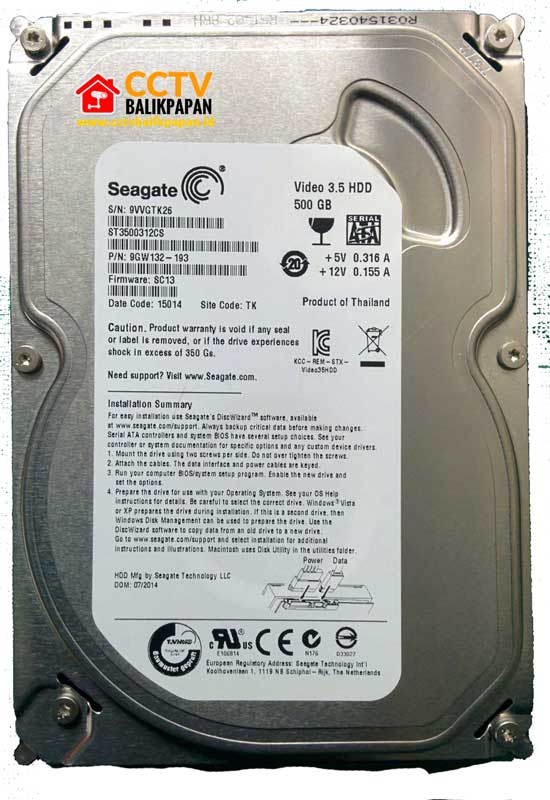

Paket Murah CCTV Dahua 2MP HD JERNIH Terima bersih langsung hidup termasuk pemasangan Online bisa lihat di HP DVR 4 Channel FULL HD 1080 1 Kamera Indoor Dahua 2MP 1 Kamera Outdoor Dahua 2MP 40 Meter Kabel Coaxial CCTV 500 GB HDD SEAGATE CCTV1  Kabel HDMI 1 Power Supply Central CCTV 12V 5A 4pc dran bnc taiwan Kabel Lan 3 Meter 2pc jack power dc Stop Kontak , Steker dan Kabel Listrik

Pesan

More about this item

Paket CCTV MURAH  HD 1080 Dahua

Dahua merupakan produk cctv murah terbaik yang ada dipasaran saat ini, paket CCTV full HD ini sangat murah dan terjangkau dengan kualitas terbaik dan gambar video yang jernih dengan kualitas hingga 1080P, dan sudah bisa Online lihat di HP android.

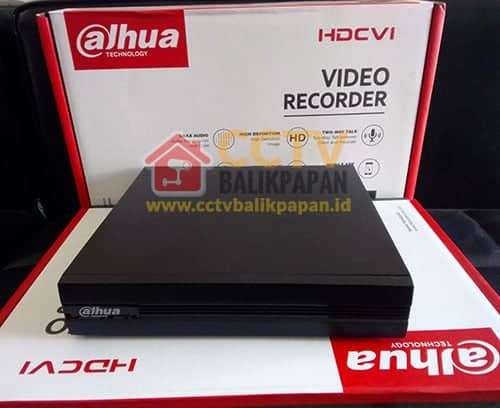

Spesifikasi DVR HD 1080

4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder

H.264 video compression Video Output : 1ch VGA,1ch HDMI Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 5/10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
>Network : RJ45 10M/100M self-adaptive Ethernet port Long transmission distance over coax cable Supports 1 SATA HDD, up to 6TB Power Supply : 12V/2A Garansi 1 Tahun

detail penjelasan spesifikasi di web resmi dari Dahua.

System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Video and Audio
Analog Camera Input4/8 Channel, BNC
HDCVI Camera1080P@25/30fps, 720P@25/30fps
AHD Camera1080P@25/30, 720P@25/30fps
TVI Camera1080P@25/30, 720P@25/30fps
CVBS CameraPAL/NTSC
IP Camera Input

4CH: 4 1, each channel up to 2MP

8CH: 8 2, each channel up to 5MP

Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
Video CompressionH.264
Resolution1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate

Main Stream:

4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

Sub steram:

4CH: CIF/QCIF (1~15fps)

8CH: CIF/QCIF (1~7fps)

Video Bit Rate32Kbps ~ 4096Kbps Per Channel
Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface1 HDMI ,1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display

When IP extension mode not enabled:

4CH: 1/4

8CH: 1/4/8/9

When IP extension mode enabled:

4CH: 1/4/6

8CH: 1/4/8/9/16

OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface1 RJ-45 Port (100M)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback

4CH: 1/4

8CH: 1/4/9

Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA Port, up to 6TB capacity
eSATAN/A
Auxiliary Interface
USB2 USB 2.0
RS232N/A
RS485N/A
Electrical
Power SupplyDC12V/1.5A

Power Consumption

(Without HDD)

<10W
Construction
DimensionsCooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)

Net Weight

(without HDD)

0.55kg (1.2lb)
Gross Weight1kg (2.2lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C ~ 45°C ( 14°F ~ 113°F), 10~ 90% RH
Storage Conditions-20°C ~ 70°C (-4°F ~ 158°F) , 0~ 90% RH
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
CertificationsFCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1

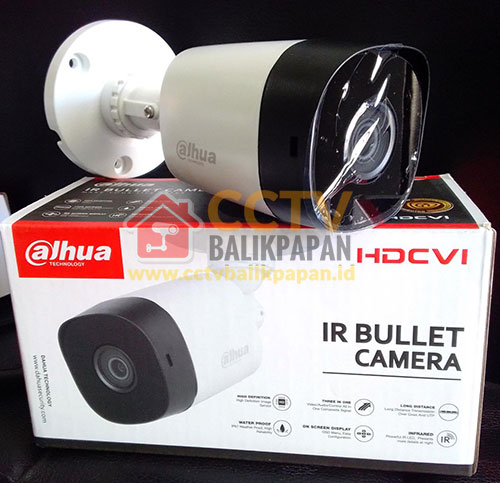

Spesifikasi Kamera Outdoor Dahua

Max. 30fps@1080P Resolution : 1080P (murni) HD and SD output switchable 3.6mm fixed lens (6mm optional) Max. IR length 20m, Smart IR IP67, DC12V Material : Plastic

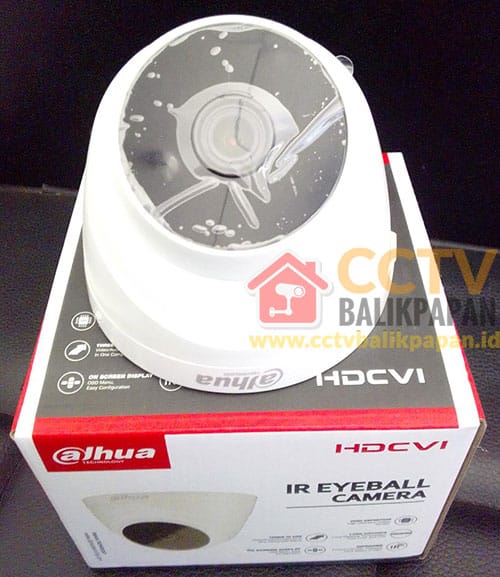

Spesifikasi Kamera Indoor Dahua

Camera
Image Sensor1/2.7″ CMOS
Effective Pixels1920(H)×1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 20m (66feet)
IR On/Off ControlAuto / Manual
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF1.85
Angle of ViewH: 93° (103°, 54.7°)
Focus ControlN/A
Close Focus Distance

800mm (500mm, 2000mm)

31.50” (19.69″, 78.74”)

Pan / Tilt / Rotation
Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video
Resolution1080P (1920×1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.


DORI

Definition

Distance
Detect

25px/m

(8px/ft)

2.8mm: 37m(121ft)

3.6mm: 51m(167ft)

6mm: 80m(262ft)

Observe

63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 20m(66ft)

6mm: 32m(105ft)

Recognize

125px/m

(38px/ft)

2.8mm: 8m(26ft)

3.6mm: 10m(33ft)

6mm: 16m(51ft)

Identify

250ppm

(76px/ft)

2.8mm: 4m(14ft)

3.6mm: 5m(17ft)

6mm: 8m(26ft)

Certifications
Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax. 2.3W (12V DC, IR on)
Environmental
Operating Conditions

-40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions-40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH
Ingress Protection & Vandal ResistanceNA
Construction
CasingPlastic
Dimensions85mm×85mm×69mm(3.35″×3.35″×2.72″)
Net Weight0.09kg (0.20lb)
Gross Weight0.13kg (0.27lb)



Untuk melihat pilihan Paket CCTV Lainnya bisa klik disini Paket CCTV. Lindungi keamanan rumah anda dengan memasang kamera cctv yang dapat dipantau setiap saat, baik lewat layar hp ataupun layar tv. Produk CCTV ini bergaransi 1 tahun untuk DVR, kamera dan hardisk saja.



Lihat juga https://cctvbalikpapan.com/produk/paket-ip-cam-cctv-hikvision-4-kamera-3mp/
