Product code: N/A

Paket 2 Kamera Dahua 2MP HD 1080

Rp 2,100,000

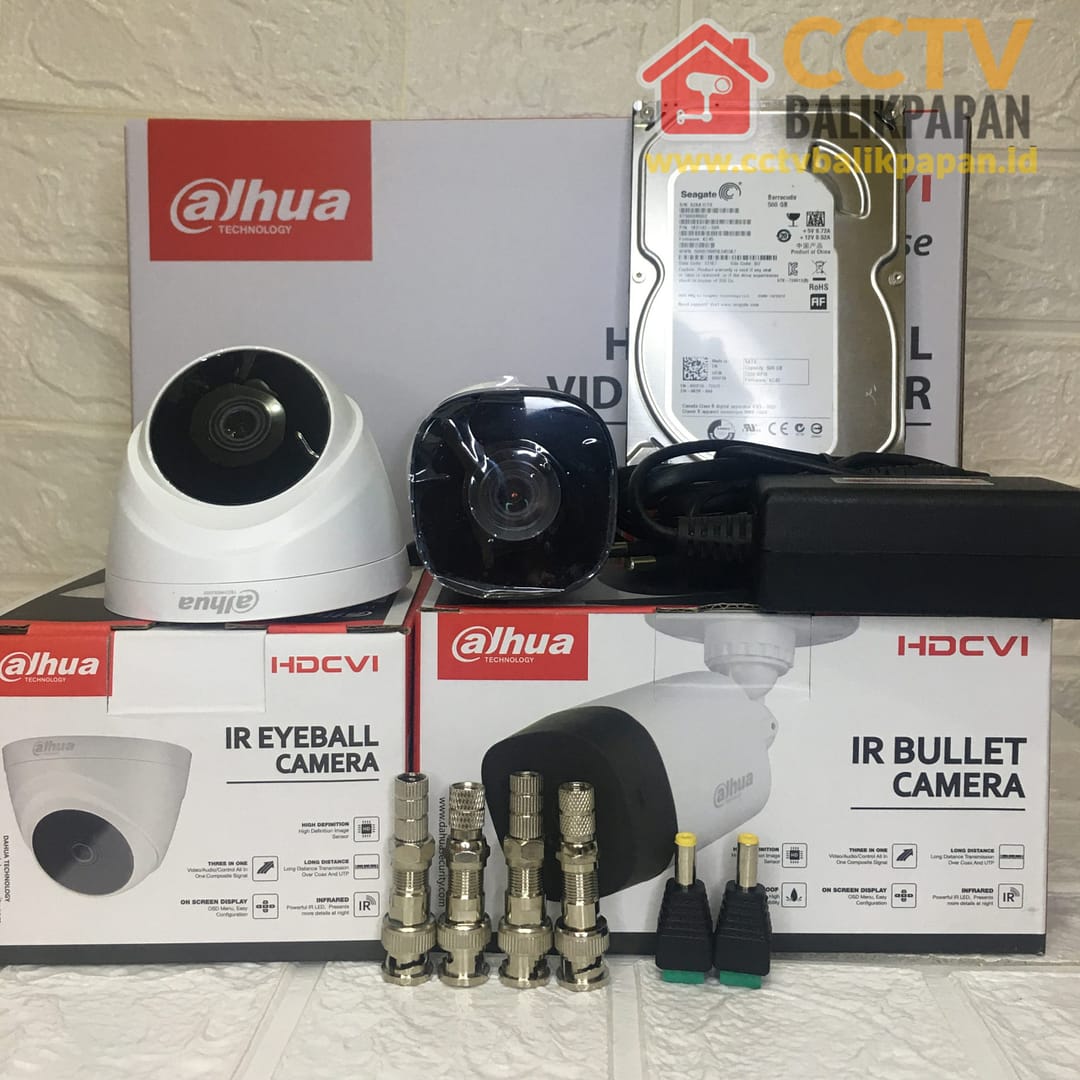

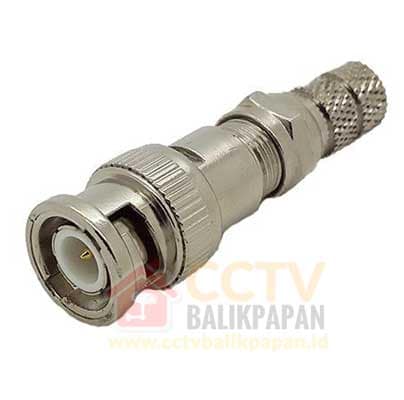

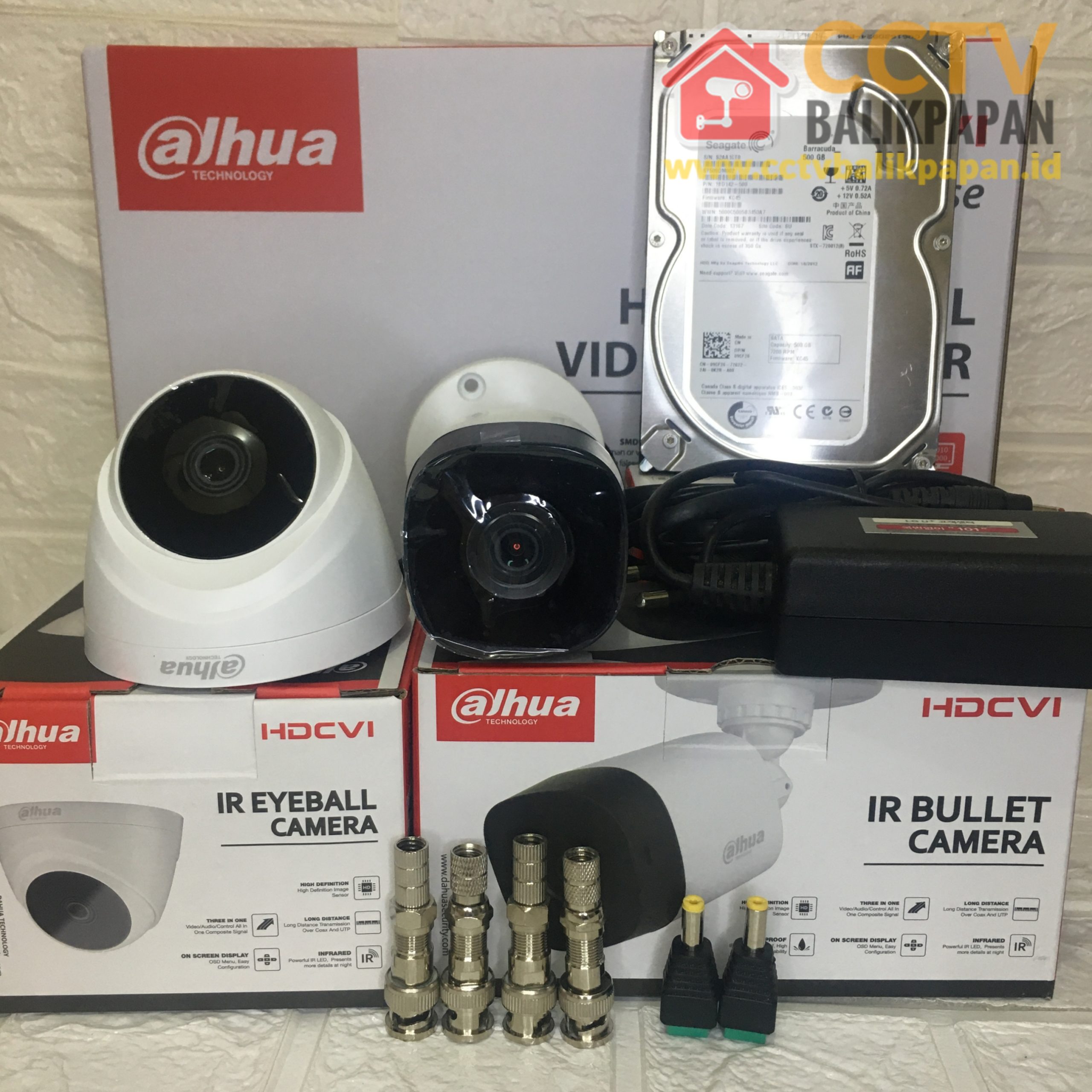

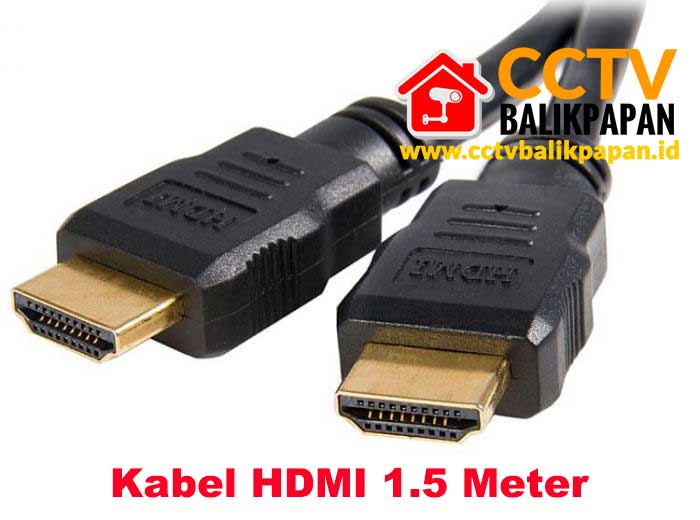

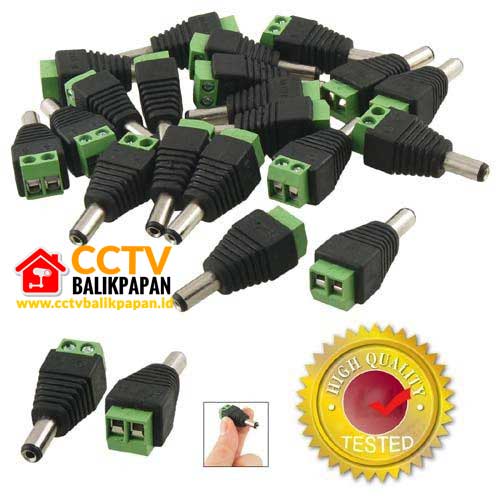

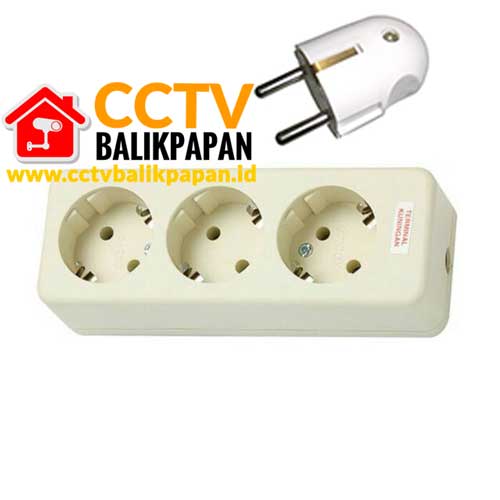

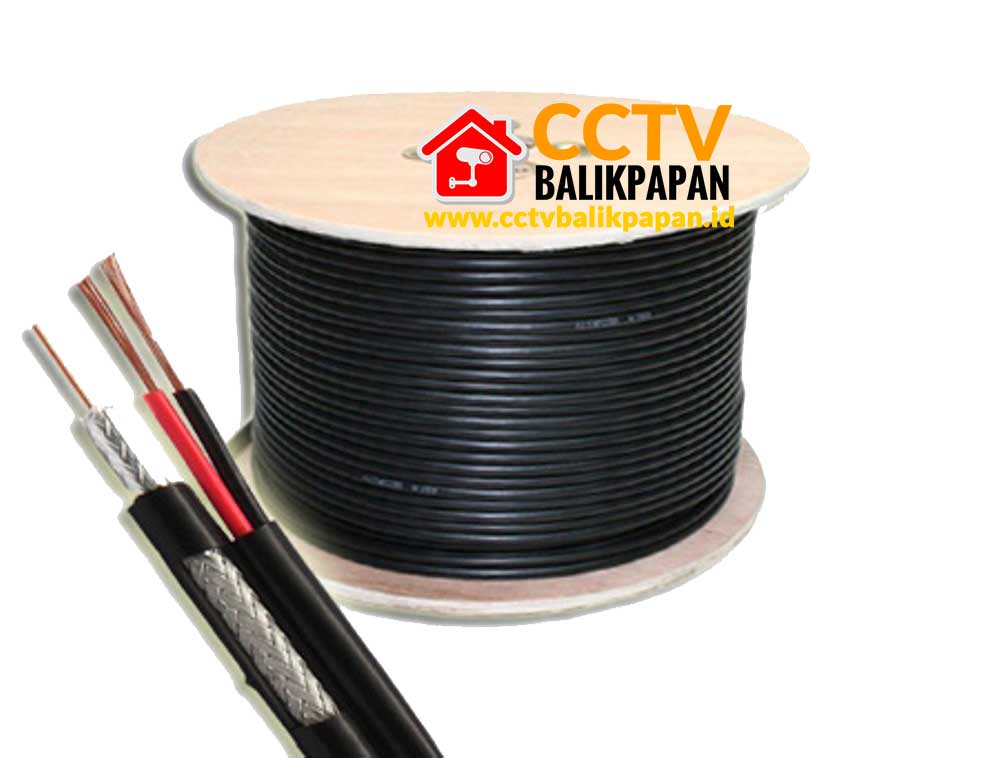

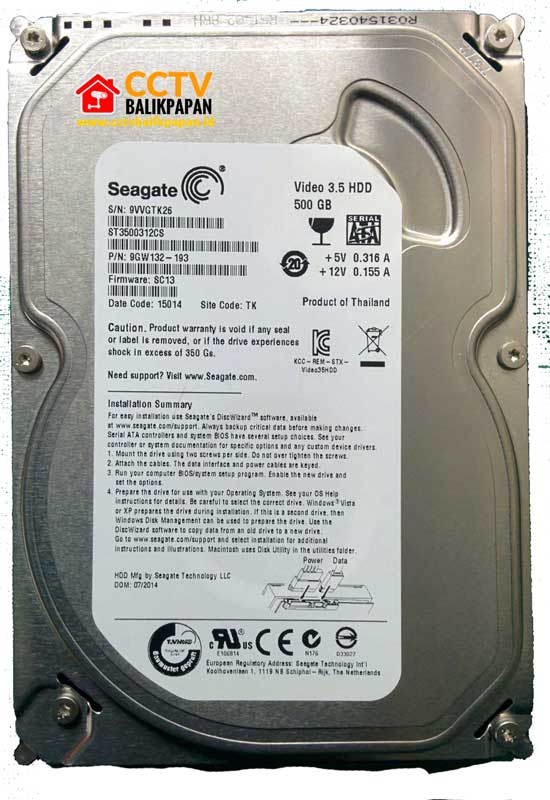

Paket Murah CCTV Dahua 2MP HD JERNIH Terima bersih langsung hidup termasuk pemasangan Online bisa lihat di HP DVR 4 Channel FULL HD 1080 1 Kamera Indoor Dahua 2MP 1 Kamera Outdoor Dahua 2MP 40 Meter Kabel Coaxial CCTV 500 GB HDD SEAGATE CCTV1 Kabel HDMI 1 Power Supply Central CCTV 12V 5A 4pc dran bnc taiwan Kabel Lan 3 Meter 2pc jack power dc Stop Kontak , Steker dan Kabel Listrik

More about this item

Paket CCTV MURAH HD 1080 Dahua

Dahua merupakan produk cctv murah terbaik yang ada dipasaran saat ini, paket CCTV full HD ini sangat murah dan terjangkau dengan kualitas terbaik dan gambar video yang jernih dengan kualitas hingga 1080P, dan sudah bisa Online lihat di HP android.

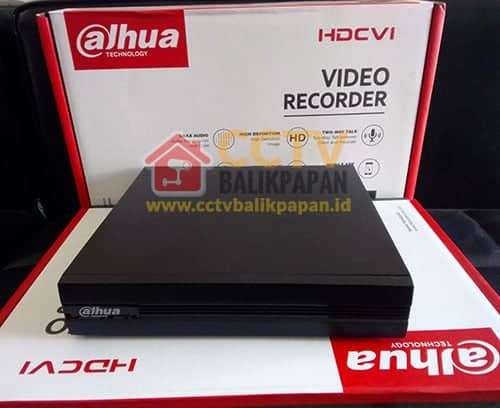

Spesifikasi DVR HD 1080

4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder

H.264 video compression Video Output : 1ch VGA,1ch HDMI Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 5/10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
>Network : RJ45 10M/100M self-adaptive Ethernet port Long transmission distance over coax cable Supports 1 SATA HDD, up to 6TB Power Supply : 12V/2A Garansi 1 Tahun

detail penjelasan spesifikasi di web resmi dari Dahua.

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

4/8 Channel, BNC

HDCVI Camera

1080P@25/30fps, 720P@25/30fps

AHD Camera

1080P@25/30, 720P@25/30fps

TVI Camera

1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4CH: 4 1, each channel up to 2MP

8CH: 8 2, each channel up to 5MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Video Compression

H.264

Resolution

1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main Stream:

4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)

Sub steram:

4CH: CIF/QCIF (1~15fps)

8CH: CIF/QCIF (1~7fps)

Video Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

When IP extension mode not enabled:

4CH: 1/4

8CH: 1/4/8/9

When IP extension mode enabled:

4CH: 1/4/6

8CH: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

4CH: 1/4

8CH: 1/4/9

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 6TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB 2.0

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC12V/1.5A

Power Consumption

(Without HDD)

<10W

Construction

Dimensions

Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)

Net Weight

(without HDD)

0.55kg (1.2lb)

Gross Weight

1kg (2.2lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ 45°C ( 14°F ~ 113°F), 10~ 90% RH

Storage Conditions

-20°C ~ 70°C (-4°F ~ 158°F) , 0~ 90% RH

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1

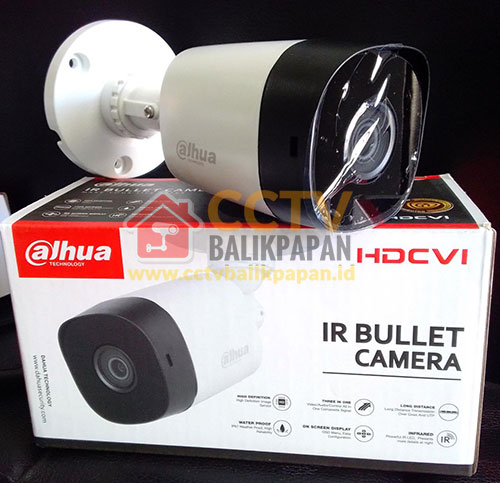

Spesifikasi Kamera Outdoor Dahua

Max. 30fps@1080P Resolution : 1080P (murni) HD and SD output switchable 3.6mm fixed lens (6mm optional) Max. IR length 20m, Smart IR IP67, DC12V Material : Plastic

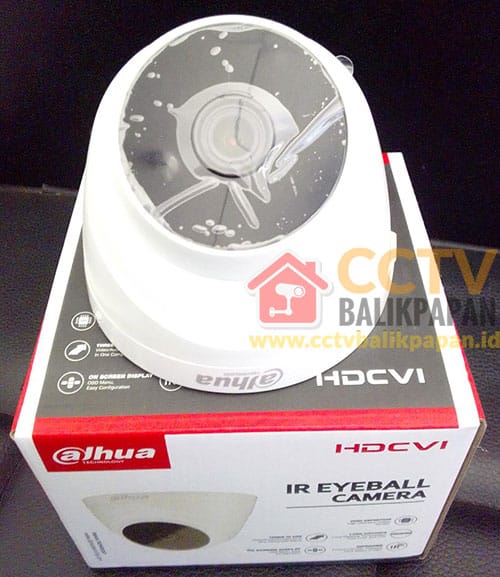

Spesifikasi Kamera Indoor Dahua

Camera

Image Sensor

1/2.7″ CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.04Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 20m (66feet)

IR On/Off Control

Auto / Manual

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm Optional)

Max Aperture

F1.85

Angle of View

H: 93° (103°, 54.7°)

Focus Control

N/A

Close Focus Distance

800mm (500mm, 2000mm)

31.50” (19.69″, 78.74”)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

White Balance

Auto / Manual

Smart IR

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m

(8px/ft)

2.8mm: 37m(121ft)

3.6mm: 51m(167ft)

6mm: 80m(262ft)

Observe

63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 20m(66ft)

6mm: 32m(105ft)

Recognize

125px/m

(38px/ft)

2.8mm: 8m(26ft)

3.6mm: 10m(33ft)

6mm: 16m(51ft)

Identify

250ppm

(76px/ft)

2.8mm: 4m(14ft)

3.6mm: 5m(17ft)

6mm: 8m(26ft)

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max. 2.3W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

Construction

Casing

Plastic

Dimensions

85mm×85mm×69mm(3.35″×3.35″×2.72″)

Net Weight

0.09kg (0.20lb)

Gross Weight

0.13kg (0.27lb)

Untuk melihat pilihan Paket CCTV Lainnya bisa klik disini Paket CCTV. Lindungi keamanan rumah anda dengan memasang kamera cctv yang dapat dipantau setiap saat, baik lewat layar hp ataupun layar tv. Produk CCTV ini bergaransi 1 tahun untuk DVR, kamera dan hardisk saja.

Lihat juga https://cctvbalikpapan.com/produk/paket-ip-cam-cctv-hikvision-4-kamera-3mp/
