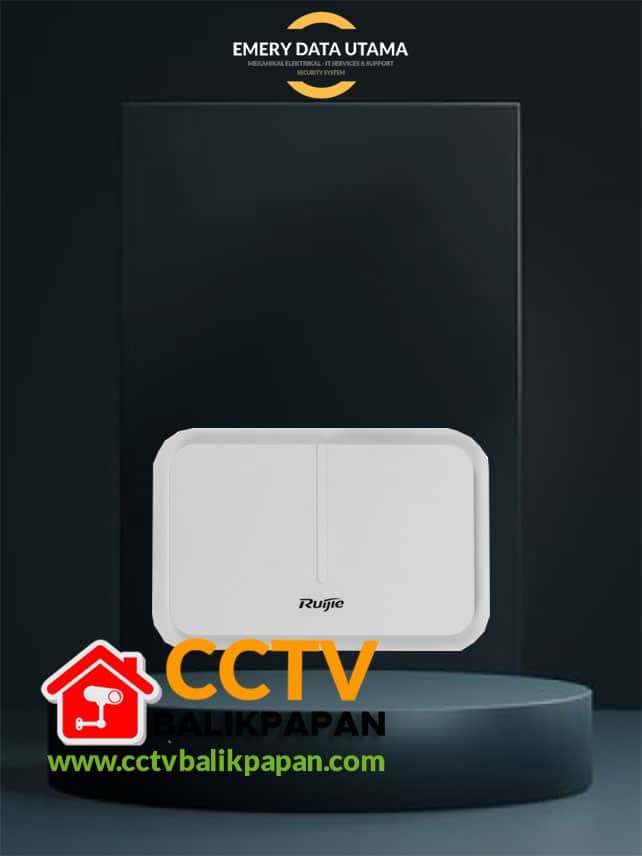

Hardware Specifications Model RG-AP680(CD) Radio Dual-radio dual-band： Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2×2 MIMO Protocol Concurrent 802.11ax and 802.11a/b/g/n/ac BLE 5.0 Operating Bands 802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax ： 5G：5.150～5.350GHz， 5.725～5.850GHz (Note: the operating bands varies according to different countries) Antenna Built-in directional antenna Antenna Loba Orientation Internal Directional: 60 degrees total Antenna Gain 9dBi Spatial Streams 4 spatial streams, MU-MIMO Max Throughput Up to [email protected] Up to 1.2Gbps@5G Up to 2.4Gbps per AP 2.4G+5G is recommended with 1.775Gbps access rate Modulation OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and [email protected]/11Mbps MIMO-OFDM：BPSK，QPSK，16QAM，64QAM and 256QAM OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and [email protected]/11Mbps MIMO-OFDM：BPSK，QPSK，16QAM，64QAM，256QAM and 1024QAM Receiver Sensitivity 11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps) 11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） 11ax HT80：-76dBm（MCS0）, -49dBm（MCS11） Maximum Transmit Power 28dBm (Note: The actual transmit power varies according to different countries and regions) Adjustable Power 1dBm Dimensions 251mm × 168mm × 64mm (without mounting bracket) Weight <1.5kg Service Ports 1 10/100/1000Base-T Ethernet uplink port（PoE） 1 SFP port Management Port 1 console port Bluetooth Support switching between Bluetooth serial port and iBeacon Power Supply Support PoE (802.3af / 802.3at) Support 44 ~ 57V DC power supply (DC Power adapters should be purchased from third-party vendors separately if needed.) Power Consumption <12.95W Operating Environment Operating Temperature: -40~65℃ Storage Temperature: -40~85℃ Operating Humidity: 0% to 100% (non-condensing) Storage Humidity: 0% to 100% (non-condensing) Installation Mode Wall/pole-mount installation IP Rating IP68 MTBF 250,000 hours Surge Protection Common mode +/-9kV Safety Standard GB4943, EN/IEC 60950-1 EMC Standard GB9254, EN301 489 Radio Standard SRRC, EN300 328, EN301 893 Wi-Fi Alliance · Wi-Fi CERTIFIED™ a, b, g, n, ac · Wi-Fi CERTIFIED 6™ · WPA3™-Enterprise, Personal · Wi-Fi Enhanced Open™ · Wi-Fi Agile Multiband™ · WMM® Software Features WLAN Maximum clients per AP 1024 SSID capacity Up to 32 SSID hiding Support Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support Remote Intelligent Perception Technology (RIPT) Support Smart device recognition Support Intelligent load balancing based on the number of users or traffic Support STA control SSID/radio-based Bandwidth control STA/SSID/AP-based speed control Security PSK and web authentication Support Data encryption WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64 / 128-bit) WeChat authentication Support QR code authentication Support SMS authentication Support PEAP authentication Support Data frame filtering Whitelist, static/dynamic blacklist User isolation Support Rogue AP detection and countermeasure Support Dynamic ACL assignment Support RADIUS Support CPU Protection Policy (CPP) Support Network Foundation Protection Policy (NFPP) Support Routing IPv4 address Static IP address or DHCP IPv6 address IPv6 terminal access authentication, ICMPv6 Management and Maintenance Supported wireless LAN controllers Ruijie WS Series Wireless Controller Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) Management protocol Telnet, SSH, TFTP, Web Wireless Intelligent AI Optimization Service (WIS) Support SNMP SNMPV1,V2c,V3 Syslog / Debug Support FAT/FIT/MACC mode switching Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
