Product code: N/A

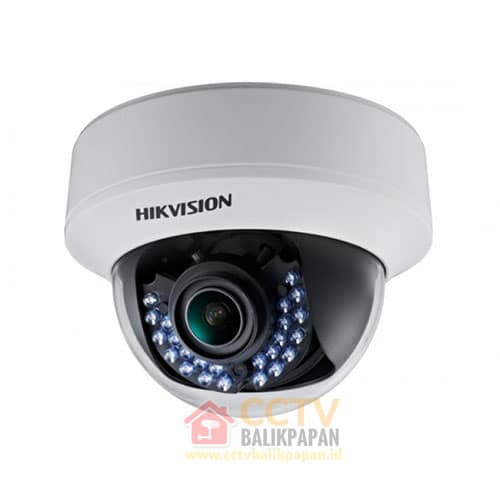

Kamera Outdoor 2MP Hikvision DS-2CE56D5T-AVPIR3ZH

Rp 3,645,000

HD1080P WDR Motorized VF Vandal Proof IR Dome Camera

2 Megapixel high-performance CMOS Analog HD output, up to 1080P resolution 2.8 – 12mm motorized vari-focal lens True Day/Night OSD menu, 3D DNR, Smart IR True WDR, up to 120dB Up to 40m IR distance Built-in heater(-H) IP66 weatherproof & vandal proof Up the Coax(HIKVISION-C, Pelco-C Protocol)

More about this item

Camera
Image Sensor:		2MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1944(H)×1092(V)
Min. Illumination:		0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		Motorized VF lens; 2.8-12mm @ F1.4 Angle of view: 103° – 32.1°
Lens Mount:		φ14
Adjustment Range:		Pan: 0 – 355°, Tilt: 0 – 75°, Rotation: 0 – 355°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120dB
Video Frame Rate:		1080p@25fps/1080p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
CVBS Output:		1Vp-p Composite Output(75Ω/BNC)
S/N Ratio:		More than 62 dB
Up the Coax:		Support

Menu
Camera ID:		On/off (15 characters, position programmable)
D/N Mode:		Color/ BW/ EXT
Auto White Balance:		ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
Private Mask:		On/Off, maximum 8 zones
Motion Detection:		On/Off, maximum 4 zones
BLC:		On/Off
AGC:		Support
Anti-flicker:		On/ Off
Language:		English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic
Function:		Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
Scene:		Indoor, Outdoor, Indoor1, LOW-LIGHT

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%, 24 VAC±15%
Power Consumption:		Max. 6W -H: Max. 12W
Impact Protection:		IK10.
Weather Proof:		IP66
Heater:		-H: support
IR Range:		Up to 40m
Communication :		Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension:		Φ 145.3 × 124.2 mm (Φ 5.72” × 4.89”)
Weight:		1350 g
