Product code: N/A

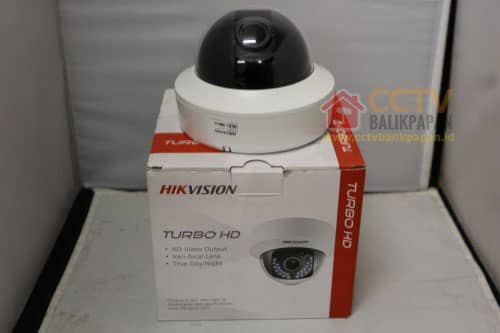

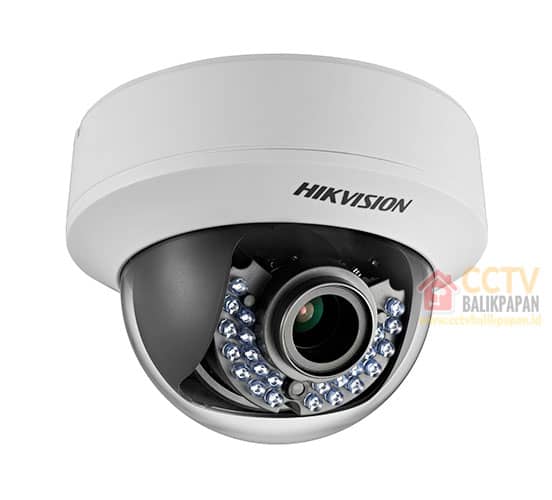

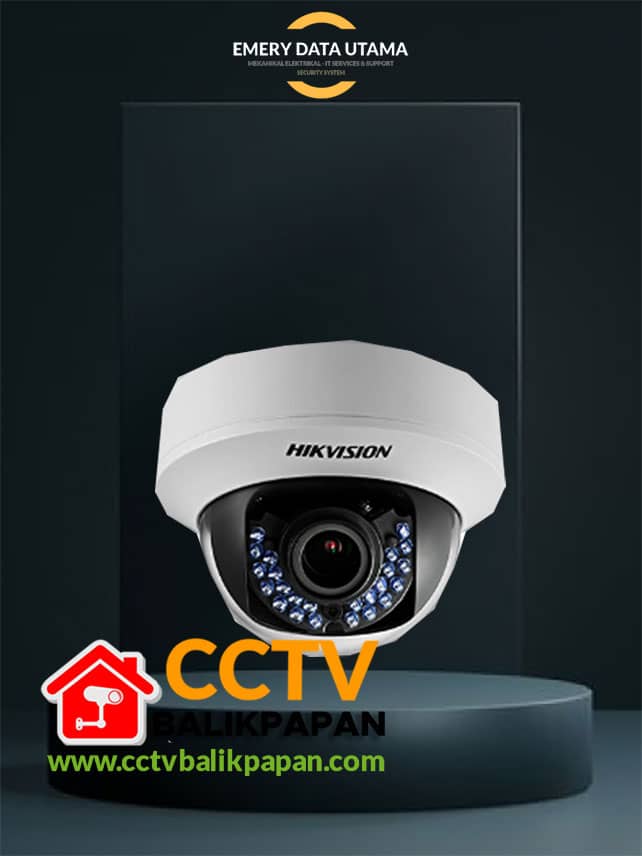

Kamera Indoor Hikvision DS-2CE56C5T-AVFIR

Rp 2,000,000

HD720P Low-light Indoor Vari-focal IR Dome Camera

1.27 Megapixel high-performance CMOS Analog HD output, up to 720P resolution True Day/Night 2.8 - 12mm vari-focal lens OSD menu, 3D DNR, Smart IR Up to 30m IR distance Low illumination Up the Coax(HIKVISION-C, Pelco-C Protocol)

More about this item

Camera
Image Sensor:		1.27MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1305(H)x977(V)
Min. Illumination:		0.001 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8-12mm @ F1.4 Angle of view: 92° – 29.3°
Lens Mount:		φ14
Adjustment Range:		Pan: 0 – 340°, Tilt: 0 – 75°, Rotation: 0 – 355°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		720p@25fps/720p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
CVBS Output:		1Vp-p Composite Output(75Ω/BNC)
S/N Ratio:		More than 62 dB
Up the Coax:		Support

Menu
Automatic Exposure:		Globe AE/DWDR
Auto Gain:		Low/Middle/High/Off
D/N Mode:		Color/ BW/ EXT
Auto White Balance:		Auto / Manual
Private Mask:		On/Off, maximum 8 zones
Motion Detection:		On/Off, maximum 4 zones
Language:		English/Chinese
Function:		Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror

General
Operating Conditions:		-20 °C – 45 °C (-4 °F – 113 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15% -A: 12 VDC±15%, 24 VAC±15%
Power Consumption:		Max. 4W -A: Max. 5W
IR Range:		Up to 30m
Communication :		Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension:		φ136 × 101 mm (φ5.35” × 3. 98”)
Weight:		600 g
