Product code: N/A

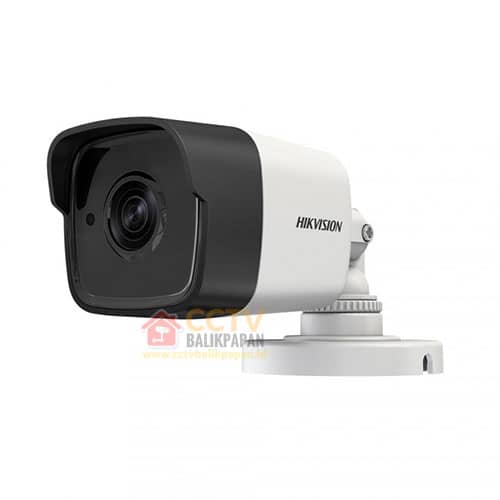

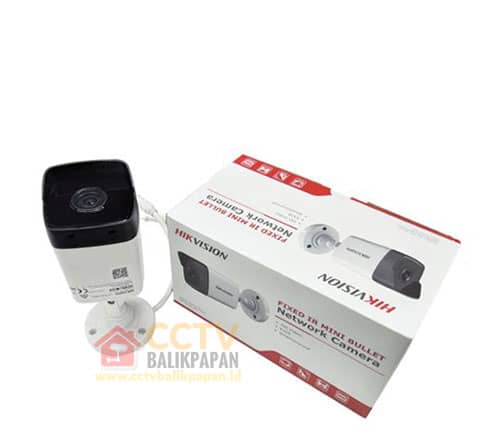

IP Camera 2MP Hikvision DS-2CD1021-I

Rp 1,086,000

1/2.8" progressive scan CMOS Up to 2.0 megapixel, 24mm fixed focal lens, IP67 Up to 30 m IR range, Dual stream, Digital WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction), PoE (Power over Ethernet) Mobile monitoring via Hik-Connect or iVMS-4500, PoE IP Camera

More about this item

Standard:	TCP/IP
Sensor:	1/2.8 ” Progressive Scan CMOS
Matrix size:	2.1 Mpx
Scanning system:	Progressive
Resolution:	1920 x 1080 – 1080p , 1280 x 960 – 1.3 Mpx , 1280 x 720 – 720p
Operation modes:	Main and sub streams may be in any configuration Firmware V5.4.5 bulid 170123 Main stream : 1920 x 1080, 1280 x 960, 1280 x 720 Sub stream : 704 x 576, 640 x 480, 352 x 288, 320 x 240
Lens:	2.8 mm
View angle:	106 ° (manufacturer data) 103 ° (our tests result)
Range of IR illumination:	30 m
S/N ratio:	> 50 dB
RS-485 interface:
Memory card slot:
Image compression method:	H.264 / H.264 / MJPEG
Alarm inputs / outputs:
Audio:
Bitrate:	256 kbps … 8192 kbps – H.264
Main stream frame rate:	25 fps @ 1080p
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	TCP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IEEE 802.1x, IPv6, Bonjour
WEB Server:	Built-in
Max. number of on-line users:	6
ONVIF:	2.6
Mobile phones support:	Port no.: 8000 or access by a cloud (P2P) Android: Free application iVMS-4500 or Hik-Connect iOS (iPhone): Free application iVMS-4500 or Hik-Connect
Default admin user / password:	admin / –
Default IP address:	192.168.1.64
Web browser access ports:	80
PC client access ports:	Port no.: 8000 or access by a cloud (P2P) – iVMS-4200 application
Mobile client access ports:	8000
Port ONVIF:	80
RTSP URL:	Main stream rtsp://192.168.1.64:554/Streaming/Channels/101/ – RTSP – without authorization rtsp://user:[email protected]:554/Streaming/Channels/101/ – with authorization Sub stream rtsp://192.168.1.64:554/Streaming/Channels/102/ – RTSP – without authorization rtsp://user:[email protected]:554/Streaming/Channels/102/ – with authorization
Main features:	ROI – improve the quality of selected parts of image EXIR – high-efficiency infrared LEDs technology, which evenly covers the whole plan of both central vantage points of the scene as well as the corners 3D-DNR – Digital Noise Reduction D-WDR – Wide Dynamic Range ICR – Movable InfraRed filter BLC – configurable Back Light Compensation Day/Night mode (color/b&w/auto) Configurable Privacy Zones Motion Detection – 22 x 18 motion zones Sharpness – sharper image outlines Mirror – Mirror image
Power supply:	PoE (802.3af), 12 V DC / 410 mA
Power consumption:	≤ 5.0 W
Housing:	Compact – Plastic
Color:	White
“Index of Protection”:	IP67
Operation temp:	-30 °C … 60 °C
Weight:	0.28 kg
Dimensions:	173 x 70 x 66 mm
Supported languages:	English, Bulgarian, Chinese, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Japanese, Korean, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Thai, Turkish, Hungarian, Vietnamese, Italian
