Product code: N/A

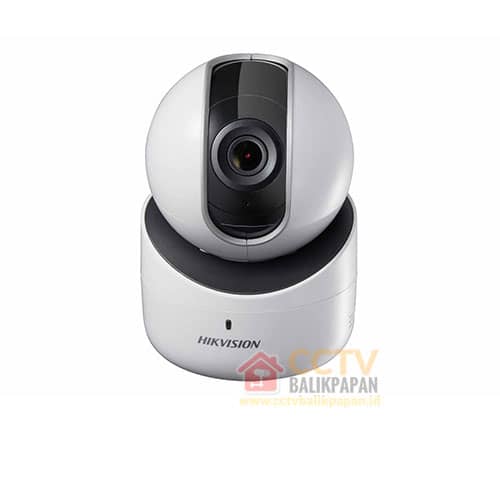

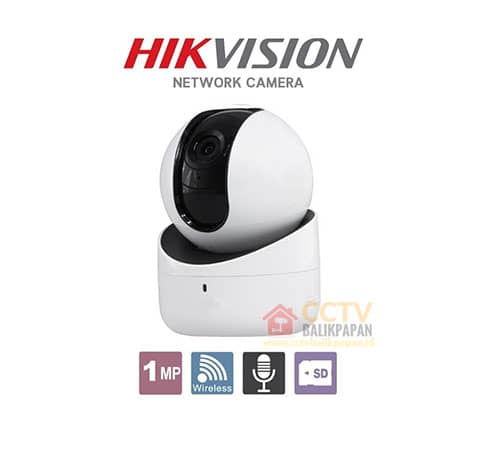

IP Camera 1MP Hikvision DS-2CV2Q01FD-IW/16GB-T

Rp 1,780,000

1.0 MP Network PT Camera

Up to 1.0 megapixel high resolution Two video streams 2.8mm fixed lens Digital Wide Dynamic Range 3D Digital Noise Reduction Build-in microphone and speaker, support two-way audio Support on-board storage, up to 128GB Up to 5 m IR range Built-in Wi-Fi DC 5V ± 10 %, micro USB interface

More about this item

Camera
Image Sensor:		1/4″ progressive scan CMOS
Min. Illumination:		0.02Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Support
Lens:		2.8mm, horizontal field of view 92°
Lens Mount:		M12
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		Digital WDR
Digital noise reduction:		3D DNR

Compression Standard
Video Compression:		H.264
H.264 code profile:		Baseline Profile/Main Profile
Video bit rate:		32Kbps~8Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2
Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Max. Image Resolution:		1280 × 720
Sub Stream:		50Hz: 25fps (1280 × 720) 60Hz: 30fps (1280 × 720)
Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:		Yes, zone configurable
ROI:		Support 1 fixed region for each stream
Day/Night Switch:		Support auto/scheduled

Network
Alarm Trigger:		Video tampering, alarm input, alarm output, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x

Interface
Audio:		Internal Microphone and Speaker
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Wi-Fi Specification (-W)
Wireless Standards:		IEEE802.11b, 802.11g, 802.11n
Frequency Range:		2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:		20/40MHz Support
Security:		64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate:		11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:		50m(depend on environment)
Protocols:		802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM

General
Memory Card:		DS-2CV2Q01FD-IW: no memory card included DS-2CV2Q01FD-IW/16G-T: includes a 16 GB memory card DS-2CV2Q01FD-IW/32G-T: includes a 32 GB memory card DS-2CV2Q01FD-IW/64G-T: includes a 64 GB memory card
Operating Conditions:		-10°C ~ 40°C (14°F ~ 104°F), Humidity 95% or less (non-condensing)
Power Supply:		DC 5V ± 10 %, micro USB interface
Power Consumption:		Max. 7W
IR Range:		Up to 5 meters
Dimensions:		Φ 82.4 × 113.6 mm (Φ 3.25′ × 4.47′)
Weight:		Approx. 510g (1.12 lb)
