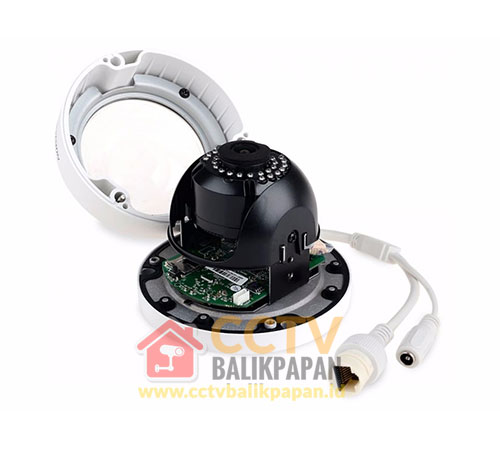

IP Camera 1.3MP Hikvision DS-2CD2110F-IW

Rp 1,925,000

1.3MP Fixed Dome Network Camera

  • 1.3MP 1/3'' Progressive scan CMOS

  • Support dual streams

  • Up to 30 meters IR range

  • Support Wi-Fi

  • IR cut filter with auto switch

  • DC12V & PoE

  • Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

  • Ingress Protection level: IP66

Pesan

More about this item

Camera
Image Sensor: | 1/3″ Progressive Scan CMOS
Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028 Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Lens: | 4mm@ F2.0 (2.8mm, 6mm optional), Angle of view: 92.5°(2.8mm), 73.1°(4mm) , 46°(6mm)
Lens Mount: | M12
Adjustment Range: | Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0-355°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | Digital WDR
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~12Mbps
Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2
Audio bit rate: | 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Dual Stream: | Yes
Max. Image Resolution: | 1280×960
Frame Rate: | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720)
Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: | Yes, zone configurable
ROI: | Support
Network
Network Storage: | Built-in Micro SD/SDHC/SDXC slot, up to 64G, NAS(NFS, SMB/CIFS)
Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security: | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Wi-Fi Specification (-W)
Wireless Standards: | IEEE802.11b, 802.11g, 802.11n
Frequency Range: | 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: | 20/40MHz Support
Modulation Mode: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power: | 11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm
Receive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical)
Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range: | 50m(depend on environment)
Protocols: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 10%, PoE (802.3af)
Power Consumption: | Max. 5W
Impact Protection: | IK08(-W model)/IK10(non -W model)
Weather Proof: | IP66
IR Range: | Up to 30m
Dimensions: | Φ111 × 82 (4.4” × 3.2”)
Weight: | 500g (1.1 lbs)
NOTE:: | “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol.
