Product code: N/A

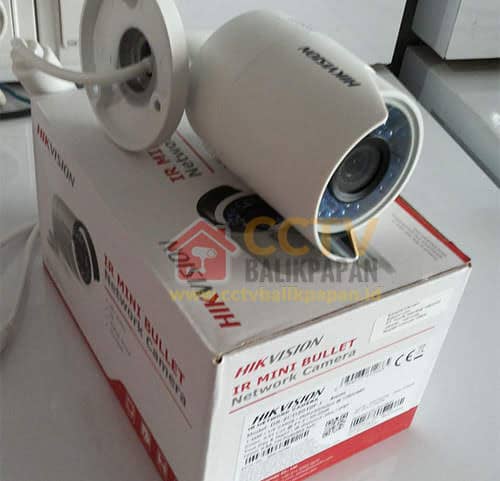

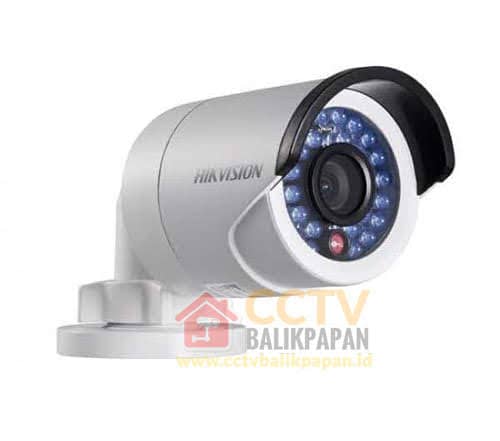

IP Camera 1.3MP Hikvision DS-2CD2010F-IW

Rp 1,925,000

1.3MP high resolution HD real-time video 3D DNR & DWDR & BLC IR LEDs: up to 30m IP67 PoE Compact design Bracket included

Camera
Image Sensor:		1/3″ Progressive Scan CMOS
Min. Illumination:		0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter time:		1/3 s to 1/100,000 s
Lens:		4mm@ F2.0, Angle of view: 73.1° (6mm optional)
Lens Mount:		M12
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		Digital WDR
Digital noise reduction:		3D DNR

Max. Image Resolution:		1280×960
Frame Rate:		50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
BLC:		Yes, zone configurable
ROI:		Support

Network
Network Storage:		NAS (Support NFS,SMB/CIFS)
Alarm Trigger:		Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:		TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System Compatibility:		ONVIF, PSIA, CGI, ISAPI

Interface
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Smart Feature-set
Line Crossing Detection:		Cross a pre-defined virtual line
Intrusion Detection:		Enter and loiter in a pre-defined virtual region

Wi-Fi Specification (-W)
Wireless Standards:		IEEE802.11b, 802.11g, 802.11n
Frequency Range:		2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:		20/40MHz Support
Security:		64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Receive Sensitivity:		11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical)
Transmission Rate:		11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:		50m(depend on environment)
Protocols:		802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:		12 VDC ± 10%, PoE (802.3af)
Power Consumption:		Max. 4.9 W
Weather Proof:		IP67
IR Range:		Up to 30m
Dimensions:		70×157×62 mm (2.8” × 6.1” × 2.4”)
Weight:		500g (1.1 lbs)
