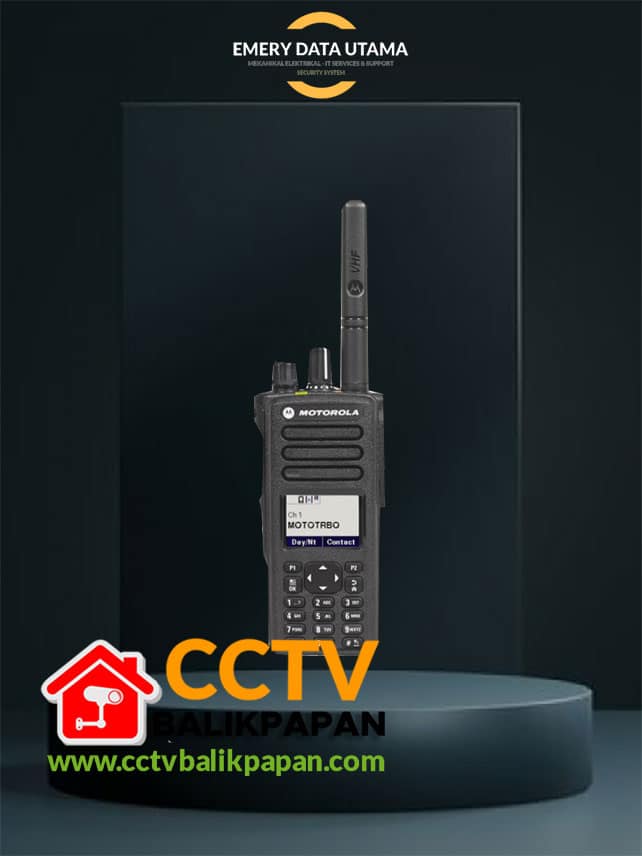

HT Motorola XIR-P8668i UHF 403-527 MHZ

Features :
– Analog / Digital
– Voice Communications
– Dual Capacity Direct Mode
– Digital Mobile Radio (DMR) Standards
– Compliant
– Narrowbanding Compliant
– IP54 Rated
– Intelligent Audio
– Integrated Bluetooth
– Integrated GPS
– Instant Text Messaging

Specs :
Frequency Ranges :
– UHF : 403-527 MHz
Number of Channels : 1000 channel
Operating Temperature: -30 ~ +60C
Power Supply : 7.5V
Dimensions : 130.3×55.2×35.8 mm
Weight : 335.5 g

Receiver :
Channel Spacing : 12.5kHz / 25kHz
Frequency Stability : 0.5ppm
Analog Sensitivity : 0.3uV / 0.22uV(typical)
Digital Sensitivity : 0.3uV / 0.19uV(typical)
Intermodulation : -70dB
Spurious Rejection :
– (TIA603D) : -70dB
Rated Audio : 0.5W
Audio Distortion : 5%(3% typical)
Adjacent Channel Selectivity :
– (TIA603A)-1T : 60dB @ 12.5kHz, 70dB @ 25kHz
– (TIA603A)-2T : 45dB @ 12.5kHz, 70dB @ 20/25kHz
Hum and Noise : -40dB @ 12.5kHz, -45dB @ 20/25kHz
Conducted Spurious Emission (TIA603D) : -57dBm

Transmitter :
RF Output :
– UHF : 403-527 MHz
Low Power Output : 1W
High Power Output : 5W
Channel Spacing : 12.5kHz / 20kHz / 25kHz
Frequency Stability : 0.5ppm
Modulation Limiting : 2.5kHz @ 12.5kHz / 5.0kHz @ 25kHz
