Product code: N/A

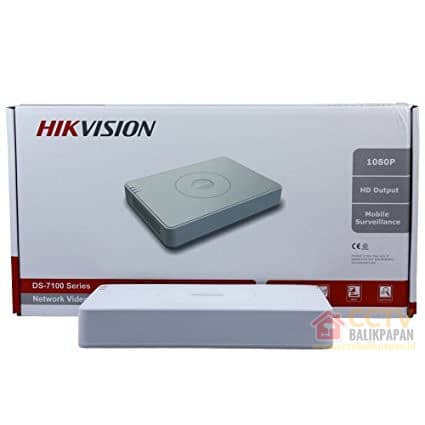

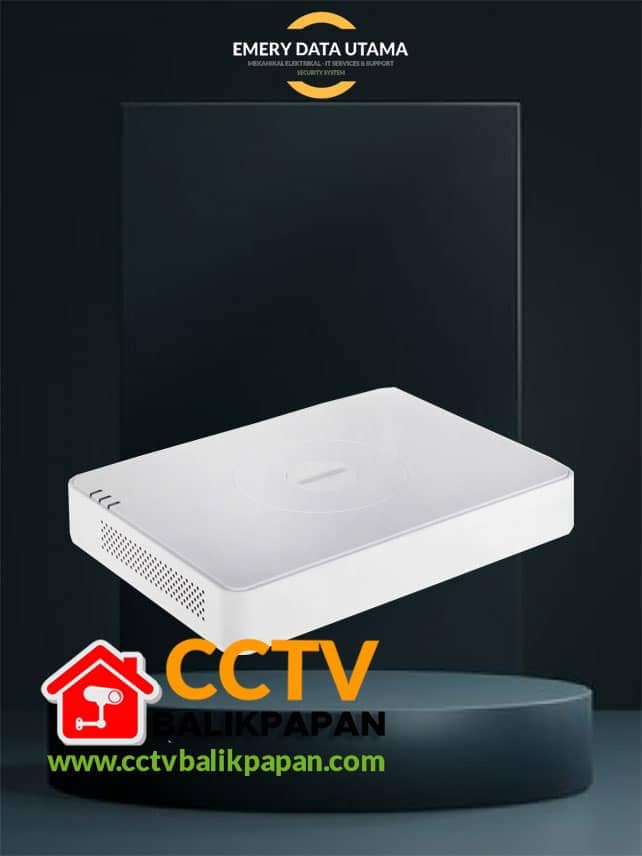

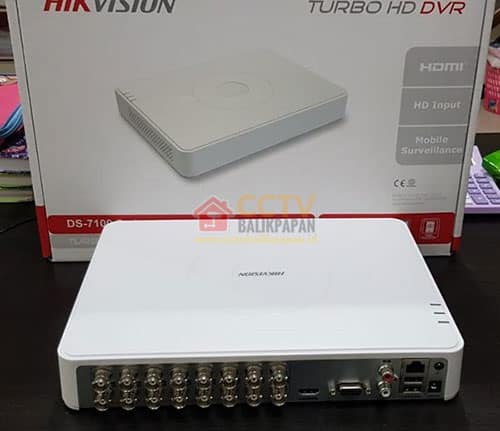

DVR HIKVISION DS-7116HGHI-F1 16 CHANNEL

Rp 2,600,000

Key Features

H.264 & Dual-stream video compression Support both HD-TVI /analog and AHD cameras with adaptive access Full channel@720P resolution non real-time recording HDMI and VGA output at up to 1920×1080P resolution Long transmission distance over coax cable Support 4/8/16-ch synchronous playback at 720P resolution

More about this item

Model		DS-7116HGHI-F1
Video/Audio input	IP video input	16-ch BNC interface
Video/Audio input	Two-way audio	1-ch, RCA (2.0 Vp-p, 1kΩ) using audio input
Video/Audio output	Recording resolution	Main stream : 720P/WD1/4CIF/VGA/CIF; Sub-stream: CIF/QVGA/QCIF(real time)
	CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
	HDMI output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
	VGA output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
	Audio output	1-ch, RCA (Linear, 1KΩ)
	Playback resolution	720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
	Synchronous playback	16-ch
Hard disk	SATA	1 SATA interface
	eSATA	1 eSATA interface
	Capacity	Up to 6 TB capacity for each disk
External interface	Network interface	1; 10M/100M self-adaptive Ethernet interfaces
	Network interface
	Serial interface	1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface
	USB interface	2 USB 2.0 interfaces
	Alarm in	16-ch
	Alarm out	4-ch
Others	Power supply	12V DC
Others	Consumption (without hard disk or DVDR/W)	≤ 8W
	Working temperature	-10 ~ 55 oC(14oF ~ 131 oF)
	Working humidity	10 % ~ 90 %
	Chassis	19-inch rack-mounted 1.5Uchassis
