Product code: N/A

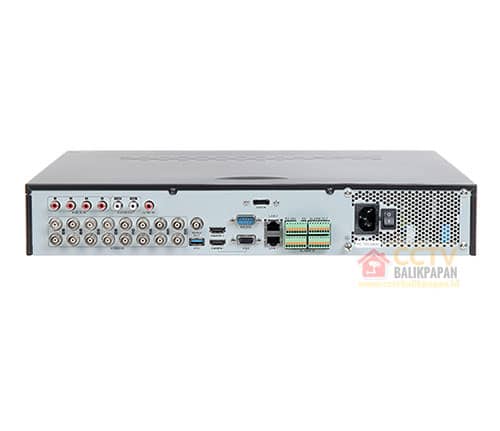

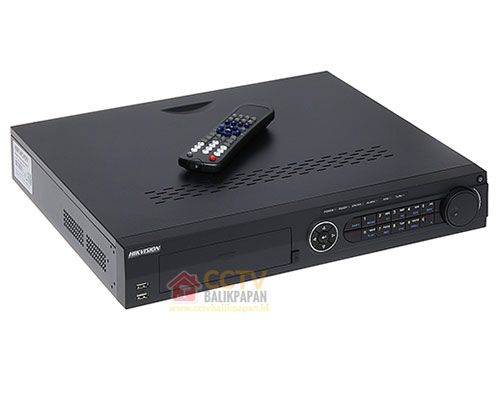

DVR HIKVISION 7316HUHI-F4/N 16 CHANNEL

Rp 14,375,000

Turbo HD DVR

H.264 ,H.264 & Dual-stream video compression Support HD-TVI, IPC,AHD and analog cameras with adaptive access Support Cloud storage(One Drive, Google Drive or Drop Box) Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution Long transmission distance over coax cable Up to 4/8/16-ch synchronous playback at 3MP resolution playback at up to 256X speed. Support POS functions. Raid 1/0/5/10 Dual network ports

More about this item

Video/Audio Input
Audio Input:		4-ch
Video Compression:		H.264,H.264
Analog and HD-TVI video input:		16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output
HDMI 1/ VGA and HDMI2:		HDMI1 & VGA: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz HDMI2: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
CVBS Output:		1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
Recording resolution:		3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-10 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		2-ch, RCA (2.0 Vp-p, 1 kΩ)
Playback Resolution:		3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver
Interface Type:		4 SATA Interfaces
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
USB Interface:		2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface:		1 RJ45 RS-232 interface；1 RS-485 interface; 2 RS-485 keyboard interface
Alarm Input:		16-ch
Alarm Output:		4-ch

General
Power Supply:		100 to 240 VAC
Consumption:		≤ 65W(without hard disks)
Working Temperature:		-10 oC ~ 55 oC (14 oF ~ 131 oF)
Working Humidity:		10% ~ 90%
Dimensions:		445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
Weight:		≤ 5 kg (11.0lb)
