Product code: N/A

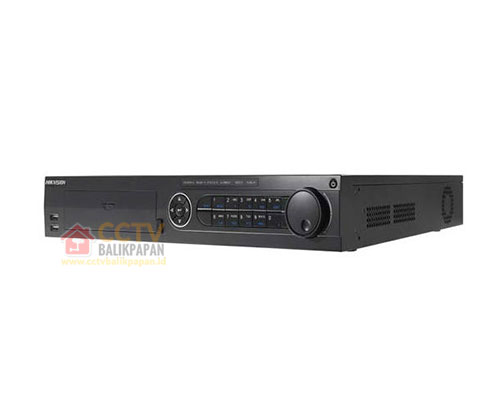

DVR HIKVISION 7304HQHI-SH 4 CHANNEL

Rp 9,370,000

Turbo HD DVR

H.264 & Dual-stream video compression Support HD-TVI/analog/IP camera triple hybrid Support both HD-TVI and analog cameras with adaptive access Full channel@1080P resolution real-time recording HDMI and VGA output at up to 1920×1080P resolution Long transmission distance over coax cable Support up to 16-ch synchronous playback at 1080P resolution

More about this item

Video/Audio Input
Audio Input:		4-ch
Video Compression:		H.264
Analog and HD-TVI video input:		4-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types:		720p/25Hz, 720p/30Hz, 720p/50Hz, 720p/60Hz, 1080p/25Hz, 1080p/30Hz, CVBS
IP Video Input:		2-ch (up to 6-ch) Up to 2MP resolution
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output
CVBS Output:		1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		1080p/720p/VGA/WD1/4CIF/CIF
Frame Rate:		Main stream: 1080p/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF/QCIF/QVGA@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-10 Mbps
Audio Output:		2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Synchronous Playback:		4-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS

Hard Disk Driver
Interface Type:		4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:		3 USB2.0 interfaces
Serial Interface:		1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface
Alarm Input:		16-ch
Alarm Output:		4-ch

General
Power Supply:		100 ~ 240VAC, 47 ~ 63HZ
Consumption:		≤ 30W
Working Temperature:		-10 oC ~ 55 oC (14 oF ~ 131 oF)
Working Humidity:		10% ~ 90%
Chassis:		19-inch rack-mounted 1.5U chassis
Dimensions:		445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)
Weight:		≤5Kg (11.0lb)
