Product code: N/A

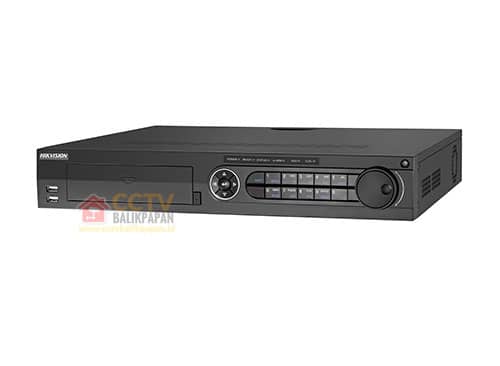

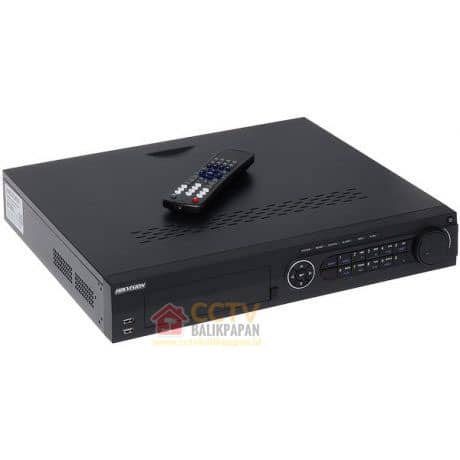

DVR HIKVISION 7304HQHI-F4/N 4 CHANNEL
Rp 7,820,000
Turbo HD DVR
H.264 ,H.264 & Dual-stream video compression Support HD-TVI, IPC,AHD and analog cameras with adaptive access Support Cloud storage(One Drive, Google Drive or Drop Box) Up to 3 MP resolution for recording of the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution Long transmission distance over coax cable Up to 4/8/16-ch synchronous playback at 1080p resolution playback at up to 256X speed. Support POS functionsMore about this item
Video/Audio Input | ||
---|---|---|
Audio Input: | 4-ch | |
Video Compression: | H.264,H.264 | |
Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
Supported camera types: | Support HDTVI input: 3MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input | |
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
Audio Compression: | G.711u | |
Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | ||
---|---|---|
CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 | |
HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz | |
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video Bit Rate: | 32 Kbps-6 Mbps | |
Stream Type: | Video/Video&Audio | |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
Audio Bit Rate: | 64kbps | |
Dual Stream: | Support | |
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF | |
Synchronous Playback: | 4-ch |
Network management | ||
---|---|---|
Remote connections: | 128 | |
Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
Hard Disk Driver | ||
---|---|---|
Interface Type: | 4 SATA Interfaces | |
Capacity: | Up to 6 TB capacity for each disk |
External Interface | ||
---|---|---|
Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
USB Interface: | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel | |
Alarm Input: | 16-ch | |
Alarm Output: | 4-ch |
General | ||
---|---|---|
Power Supply: | 100 to 240 VAC | |
Consumption: | ≤ 30W(without hard disks) | |
Working Temperature: | -10 oC ~ 55 oC (14 oF ~ 131 oF) | |
Working Humidity: | 10% ~ 90% | |
Dimensions: | 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) | |
Weight: | ≤ 5 kg (11.0lb) |
