Product code: N/A

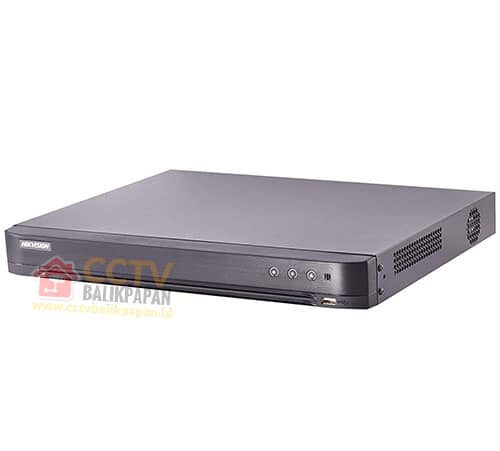

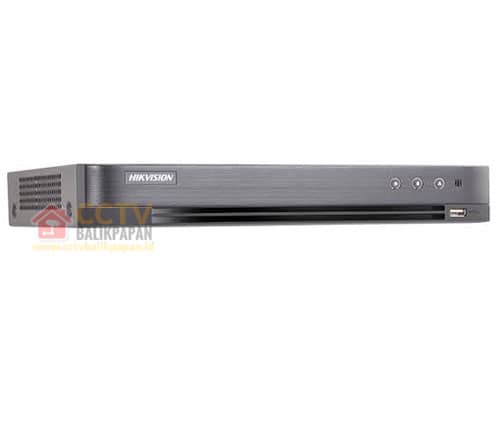

DVR HIKVISION 7216HQHI-K2/4S 16 CHANNEL
Rp 5,670,000
Turbo HD DVR
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras H.265 Pro /H.265 Pro/H.265/H.264 /H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Deep learning-based analysis: re-recognition of the human body or vehicle target in behavior detection to filter false alarm, supports 4-ch detection Self-adaptive HDTVI/HDCVI/AHD/CVBS signal inputMore about this item
Video/Audio Input | ||
---|---|---|
Audio Input: | Â | 1-ch |
Video Compression: | Â | H.265 Pro /H.265 Pro/H.265/H.264 /H.264 |
Analog Video Input: | Â | 16-ch |
Supported camera types: | Â | HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-K1/2S, forchannel 1/2 of iDS-7208HQHI-K1/4S, and for channel 1/2/3/4 of iDS-7216HQHI-K1 AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI input :1080p25, 1080p30, 720p25, 720p30 CVBS input: PAL/NTSC |
IP Video Input: | Â | up to 24-ch |
Video Input Interface: |  | BNC (1.0 Vp-p, 75Ω) |
IP Video Input Resolution: | Â | Up to 6 MP resolution |
Audio Compression: | Â | G.711u |
Audio Input Interface: |  | RCA (2.0 Vp-p, 1 kΩ) |
Video/Audio Output | ||
---|---|---|
CVBS Output: |  | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI/VGA Output: |  | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution: | Â | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
Frame Rate: | Â | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
Stream Type: | Â | Video/Video&Audio |
Audio Output: |  | 1-ch RCA(Linear, 1kΩ) |
Synchronous Playback: | Â | 16-ch |
Network management | ||
---|---|---|
Remote connections: | Â | 128 |
Network protocols: | Â | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF |
Hard Disk Driver | ||
---|---|---|
Interface Type: | Â | 2 SATA Interfaces |
Capacity: | Â | Up to 10 TB capacity for each disk |
External Interface | ||
---|---|---|
Network Interface: | Â | 1 RJ45 10M/100M/1000M adaptive Ethernet Interface |
USB Interface: | Â | 2 USB 2.0 Interfaces |
Serial Interface: | Â | 1; standard RS-485 serial interface, half-duplex |
General | ||
---|---|---|
Power Supply: | Â | 12 VDC |
Consumption: |  | ≤ 25 W |
Working Temperature: |  | -10 ºC to 55 ºC ( 14 ºF to 131 ºF) |
Working Humidity: | Â | 10% to 90% |
Dimensions: |  | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
Weight: |  | ≤ 2 kg (4.4 lb) |
