Product code: N/A

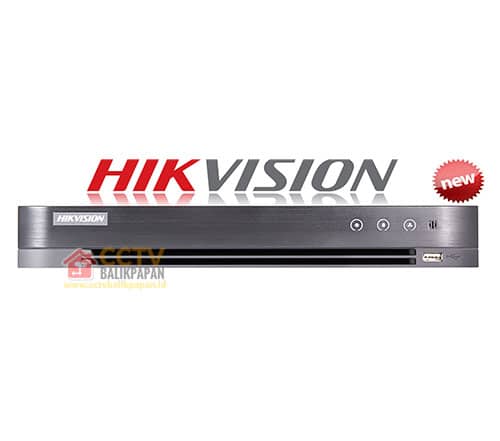

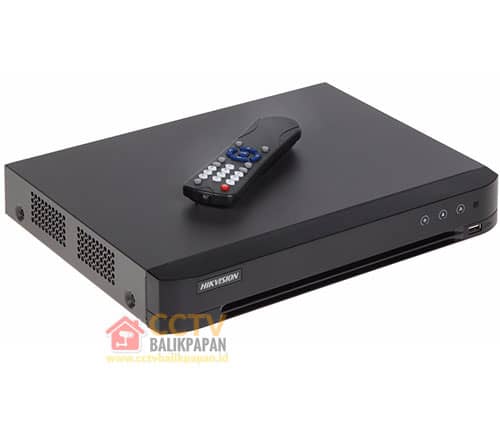

DVR HIKVISION 7216HQHI-K1/4S 16 CHANNEL

Rp 5,245,000

Turbo HD DVR

Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras H.265 Pro /H.265 Pro/H.265/H.264 /H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Deep learning-based analysis: re-recognition of the human body or vehicle target in behavior detection to filter false alarm, supports 2-ch detection for iDS-7204HQHI-K1/2S and 4-ch for iDS-7208HQHI-K1/4S Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

More about this item

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.265 Pro /H.265 Pro/H.265/H.264 /H.264
Analog Video Input:		16-ch
Supported camera types:		HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-K1/2S, forchannel 1/2 of iDS-7208HQHI-K1/4S, and for channel 1/2/3/4 of iDS-7216HQHI-K1 AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI input :1080p25, 1080p30, 720p25, 720p30 CVBS input: PAL/NTSC
IP Video Input:		up to 24-ch
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
IP Video Input Resolution:		Up to 6 MP resolution
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)

Video/Audio Output
CVBS Output:		1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Stream Type:		Video/Video&Audio
Audio Output:		1-ch RCA(Linear, 1kΩ)
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 10 TB capacity for each disk

External Interface
Network Interface:		1 RJ45 10M/100M/1000M adaptive Ethernet Interface
USB Interface:		2 USB 2.0 Interfaces
Serial Interface:		1; standard RS-485 serial interface, half-duplex

General
Power Supply:		12 VDC
Consumption:		≤ 25 W
Working Temperature:		-10 ºC to 55 ºC ( 14 ºF to 131 ºF) Worki
Working Humidity:		10% to 90%
Dimensions:		315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight:		≤ 2 kg (4.4 lb)
