Product code: N/A

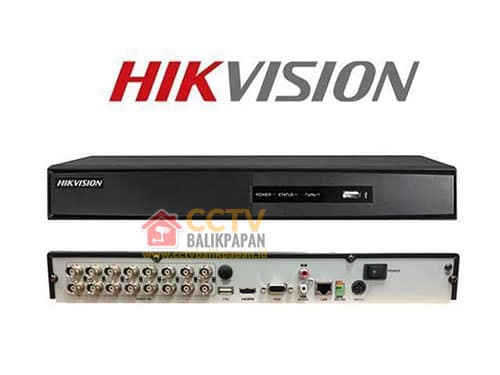

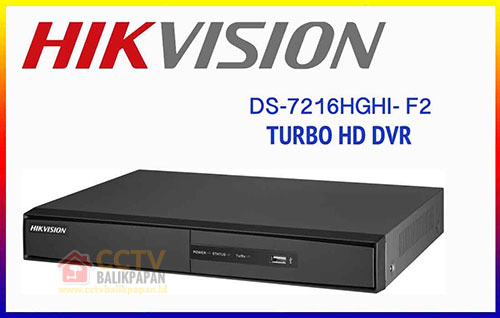

DVR HIKVISION 7216HGHI-F2 16 CHANNEL

Rp 3,335,000

Turbo HD DVR

H.264 /H.264 & Dual-stream video compression Support both HD-TVI /analog and AHD cameras with adaptive access Full channel recording at up to 1080P lite resolution HDMI and VGA output at up to 1920×1080P resolution Long transmission distance over coax cable Support 4/8/16-ch synchronous playback at 720P resolution

More about this item

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.264,H.264
Analog and HD-TVI video input:		16-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types:		Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, Support AHD input: 720P/25Hz, 720P/30Hz, support CVBS input
IP Video Input:		2-ch Up to 2MP resolution
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps ~ 4 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS

Hard Disk Driver
Interface Type:		2 SATA Interfaces
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces

General
Power Supply:		12V DC
Consumption:		≤ 20W(without hard disks)
Working Temperature:		-10 oC ~ 55 oC (14 oF ~ 131 oF)
Working Humidity:		10% ~ 90%
Chassis:		10% ~ 90%
Dimensions:		380 × 290 × 48 mm (14.9 × 11.4 × 1.9 inch)
Weight:		≤ 2 kg (4.4 lb) (without hard disks)
