Product code: N/A

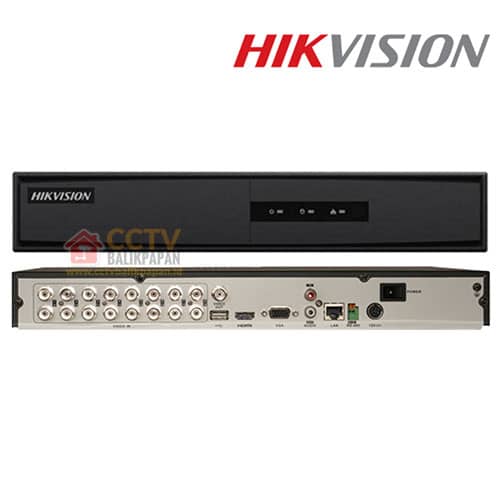

DVR HIKVISION 7216HGHI-F1/N 16 CHANNEL

Rp 2,135,000

Video Input and Transmission

Connectable to Turbo HD/HDCVI/AHD/CVBS signal input Up to 2-ch 960p IP cameras input Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording

One-key enable H.264 compression to improve encoding efficiency by up to 50% and reduce data storage costs Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

More about this item

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.264,H.264
Analog Video Input:		16-ch
Analog and HD-TVI video input:		1080p25, 1080p30, 720p25, 720p30
IP Video Input:		2-ch
Audio Compression:		G.711u
Two-way Audio:		1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution:		When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps ~ 4 Mbps
Stream Type:		Video/Video&Audio
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 6 TB capacity for each disk

External Interface
USB Interface:		2 USB 2.0 Interfaces

General
Power Supply:		12VDC
Consumption:		≤ 20 W
Working Temperature:		-10 ºC to 55 ºC (14 ºF to 131 ºF)
Working Humidity:		10% to 90%
Dimensions:		260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight:		≤ 1.2 kg (2.6 lb)
