You are here:
Product code: N/A

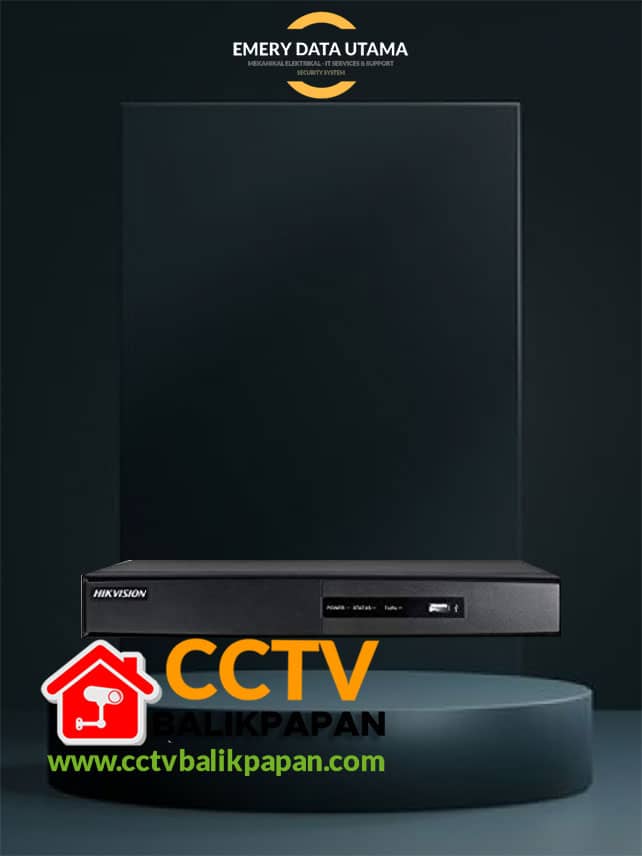

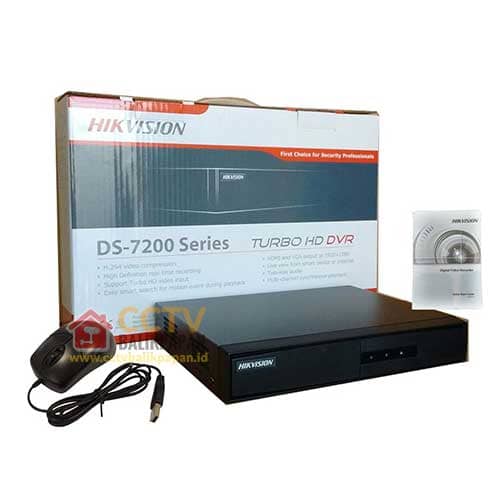

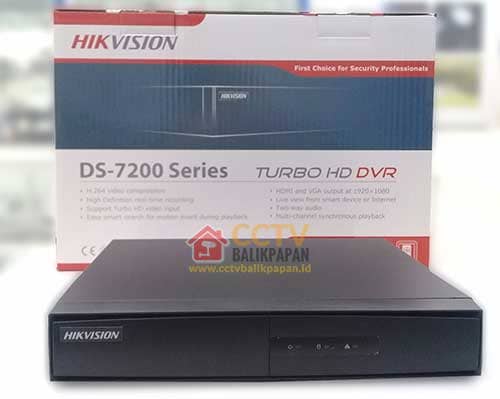

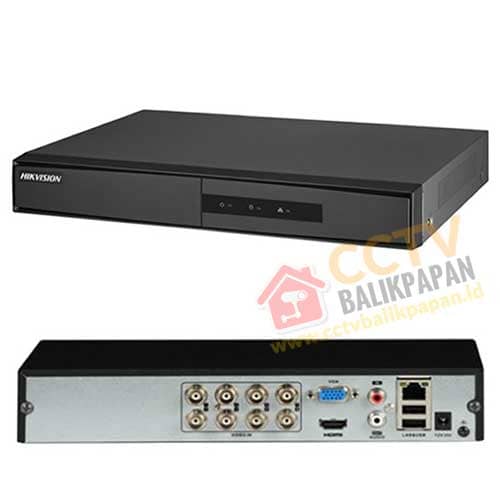

DVR HIKVISION 7208HGHI-F1/N 8 CHANEL
Rp 1,300,000
Turbo HD DVR
8 Turbo HD/AHD/Analog interface input, 8-ch video&1-ch audio input, HDMI & VGA Outout, 1 SATA interface, HD1080P Lite: 12fps/ch, 260 1U case
Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
Up to 2-ch 960p IP cameras input
Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal
One-key enable H.264 compression to improve encoding efficiency by up to 50% and reduce data storage costs
Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
More about this item
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.264,H.264 | |
| Analog Video Input: | 8-ch | |
| Analog and HD-TVI video input: | 1080p25, 1080p30, 720p25, 720p30 | |
| IP Video Input: | 2-ch | |
| Audio Compression: | G.711u | |
| Two-way Audio: | 1-ch RCA(2.0Vp-p, 1kΩ) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Encoding resolution: | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF | |
| Frame Rate: | Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps ~ 4 Mbps | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 8-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPâ„¢, HTTPS | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 6 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 12 W | |
| Working Temperature: | -10 ºC to 55 ºC (14 ºF to 131 ºF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) | |
| Weight: | ≤ 1 kg (2.2 lb) | |
