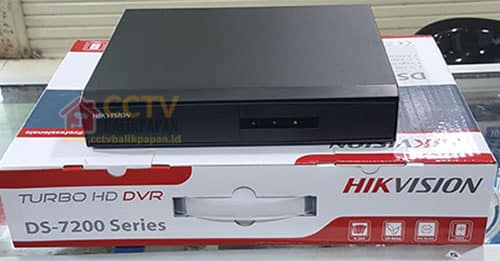

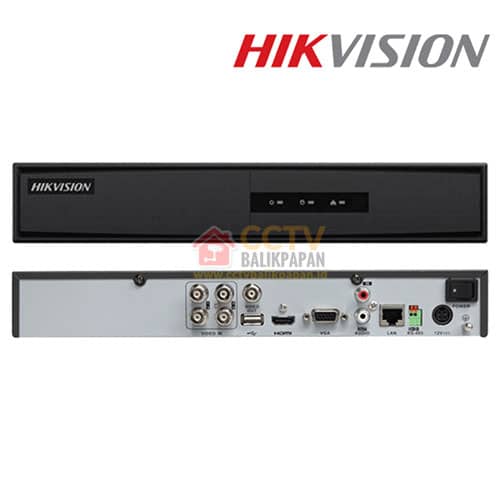

DVR HIKVISION 7208HGHI-E2 8 CHANNEL

Rp 2,860,000

Turbo HD DVR

H.264 & Dual-stream video compression Support HD-TVI/analog/IP camera triple hybrid Support both HD-TVI and analog cameras with adaptive access Full channel@ 720P resolution non real-time recording HDMI and VGA output at up to 1920×1080P resolution Long transmission distance over coax cable Support up to 16-ch synchronous playback

More about this item

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.264
Analog and HD-TVI video input:		8-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types:		720P/25, 720P/30, CVBS
IP Video Input:		2-ch Up to 2MP resolution
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		BNC (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF
Frame Rate:		1/16 fps ~ Real time frame rate
Video Bit Rate:		32 Kbps ~ 4 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		1-ch RCA(2.0 Vp-p, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Synchronous Playback:		8-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS

Hard Disk Driver
Interface Type:		2 SATA Interfaces
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces

General
Power Supply:		12V DC
Consumption:		≤ 12W(without hard disks)
Working Temperature:		-10 oC ~ 55 oC (14 oF ~ 131 oF)
Working Humidity:		10% ~ 90%
Chassis:		1U chassis
Dimensions:		380 × 290 × 48 mm (14.9 × 11.4 × 1.9 inch)
Weight:		≤ 2 kg (4.4 lb) (without hard disks)
