Product code: N/A

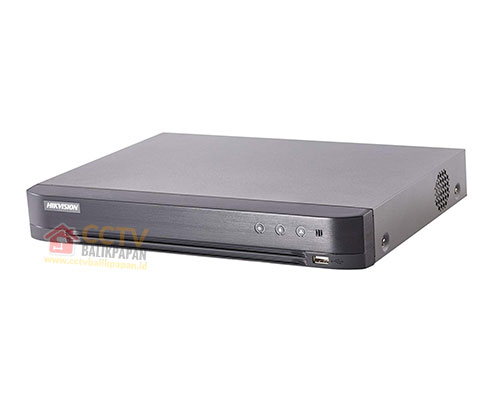

DVR HIKVISION 7204HUHI-K1/4S 4 CHANNEL
Rp 3,855,000
Turbo HD DVR
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras H.265 Pro /H.265 Pro/H.265/H.264 /H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Deep learning-based analysis: re-recognition of the human body or vehicle target in behavior detection to filter false alarm, supports 4-ch detection Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input 8 MP/5 MP/4 MP HDTVI video input and live view for iDS-7208HUHI-K1/4S, and 5 MP/4 MP for iDS-7204HUHI-K1/4SMore about this item
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | Â | 4-ch |
| Video Compression: | Â | H.265 Pro /H.265 Pro/H.265/H.264 /H.264 |
| Analog Video Input: | Â | 4-ch |
| Supported camera types: | Â | HDTVI input :5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 AHD input :5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI input :4 MP, 1080p25, 1080p30, 720p25, 720p30 CVBS input :PAL/NTSC |
| IP Video Input: | Â | up to 8-ch |
| Video Input Interface: |  | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | Â | G.711u |
| Audio Input Interface: |  | RCA (2.0 Vp-p, 1 kΩ) |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: |  | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI/VGA Output: |  | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | Â | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | Â | Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Stream Type: | Â | Video/Video&Audio |
| Audio Output: |  | 1-ch RCA(Linear, 1kΩ) |
| Synchronous Playback: | Â | 4-ch |
| Network management | ||
|---|---|---|
| Remote connections: | Â | 32 |
| Network protocols: | Â | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | Â | 1 SATA Interface |
| Capacity: | Â | Up to 10 TB capacity for each disk |
| External Interface | ||
|---|---|---|
| Network Interface: | Â | 1 RJ45 10M/100M adaptive Ethernet Interface |
| USB Interface: | Â | 2 USB 2.0 Interfaces |
| Serial Interface: | Â | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input: | Â | 4-ch |
| Alarm Output: | Â | 1-ch |
| General | ||
|---|---|---|
| Power Supply: | Â | 12 VDC |
| Consumption: |  | ≤ 10 W |
| Working Temperature: |  | -10 ºC to 55 ºC ( 14 ºF to 131 ºF) |
| Working Humidity: | Â | 10% to 90% |
| Dimensions: |  | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight: |  | ≤ 1.16 kg (2.6 lb) |
Â
Â
Lihat juga :Â https://cctvbalikpapan.com/produk/dvr-hikvision-7208huhi-k1-4s-8-channel/
