Product code: N/A

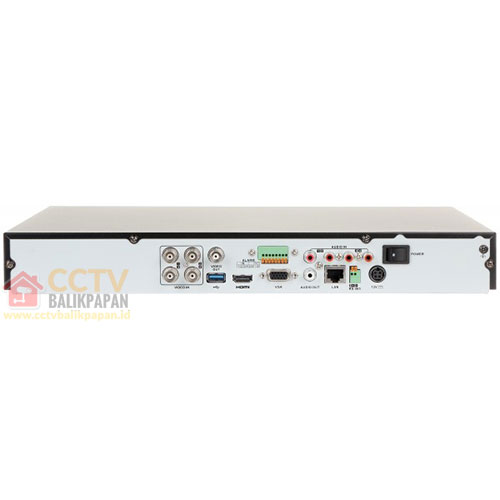

DVR HIKVISION 7204HTHI-K2 4 CHANNEL

Rp 3,900,000

Turbo HD DVR

H.265 Pro /H.265 Pro/H.265/H.264 /H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Connectable to H.265 /H.265/H.264 /H.264 IP cameras Up to 8 MP resolution for recording HDMI output at up to 4K (3840 × 2160) resolution Long distance transmission over UTP and coaxial cable 4/8-ch synchronous playback

More about this item

Video/Audio Input
Audio Input:		4-ch
Video Compression:		H.265 Pro /H.265 Pro/H.265/H.264 /H.264
Analog and HD-TVI video input:		4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output
CVBS Output:		1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:		1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz
Recording resolution:		8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: 8 MP@12fps, 5 MP@20fps, 3 MP@18fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-16384 Kbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:		4-ch

Network management
Remote connections:		32
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF

Hard Disk Driver
Interface Type:		2 SATA Interfaces
Capacity:		Up to 10 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:		1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:		1; standard RS-485 serial interface, half-duplex

General
Power Supply:		12V DC
Consumption:		≤ 15W(without hard disks)
Working Temperature:		-10 oC to 55 oC (14 oF to 131 oF)
Working Humidity:		10% to 90%
Dimensions:		380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:		≤ 1.5 kg (3.3 lb)
