Product code: N/A

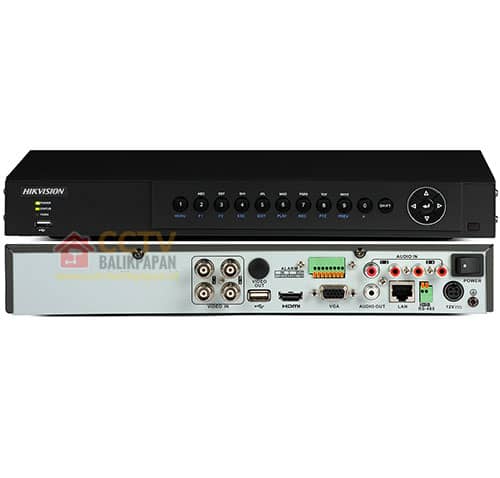

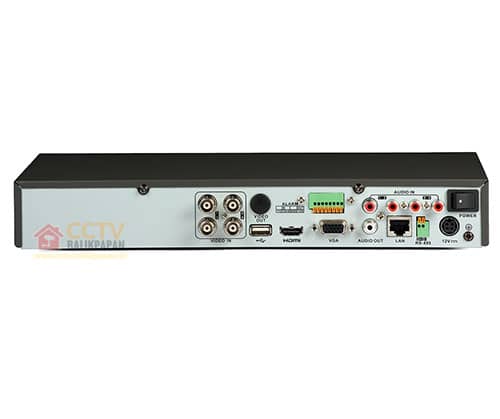

DVR HIKVISION 7204HQHI-SH 4 CHANNEL

Rp 2,850,000

Turbo HDVR

H.264 & Dual-stream video compression Support both HD-TVI and analog cameras with adaptive access Support HD-TVI/analog/IP camera triple hybrid Full channel@1080P resolution real-time recording HDMI and VGA output at up to 1920×1080P resolution Long transmission distance over coax cable Support up to 8-ch synchronous playback

More about this item

Product Description

Spesifikasi

Video/Audio Input
Audio Input:	\|	4-ch
Video Compression:	\|	H.264
Analog and HD-TVI video input:	\|	4-ch,BNC interface (1.0Vp-p, 75 O)
Supported camera types:	\|	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
IP Video Input:	\|	2-ch 1080P
Video Input Interface:	\|	BNC (1.0 Vp-p, 75O)
Audio Compression:	\|	G.711u
Audio Input Interface:	\|	RCA (2.0 Vp-p, 1 kO)
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 KO) (using the 1st channel of audio input)
Video/Audio Output
HDMI/VGA Output:	\|	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:	\|	Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame Rate:	\|	Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate
Video Bit Rate:	\|	32 Kbps-10 Mbps
Audio Output:	\|	1-ch RCA(Linear, 1kO)
Audio Bit Rate:	\|	64kbps
Dual Stream:	\|	Support
Playback Resolution:	\|	1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Synchronous Playback:	\|	4-ch
Network management
Remote connections:	\|	128
Network protocols:	\|	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type:	\|	1 SATA Interface
Capacity:	\|	Up to 6 TB capacity for each disk
External Interface
Network Interface:	\|	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:	\|	2 USB 2.0 Interfaces
Serial Interface:	\|	1; standard RS-485 serial interface, half-duplex
Alarm Input:	\|	4-ch
Alarm Output:	\|	1-ch
General
Power Supply:	\|	12V DC
Consumption:	\|	= 15W
Working Temperature:	\|	-10 ºC ~ 55 ºC (14 ºF ~ 131 ºF)
Working Humidity:	\|	10% ~ 90%
Chassis:	\|	1U chassis
Dimensions:	\|	315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch)
Weight:	\|	= 1.5Kg (3.3lb)
