Product code: N/A

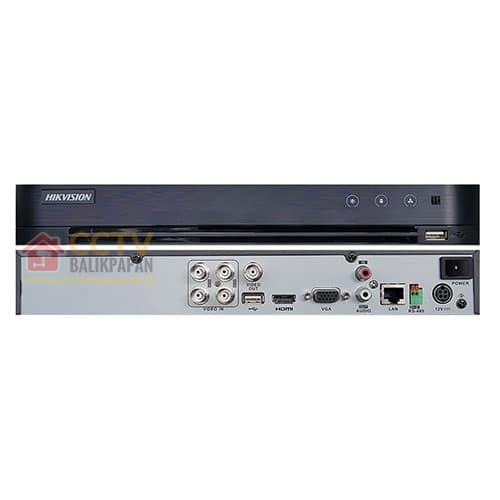

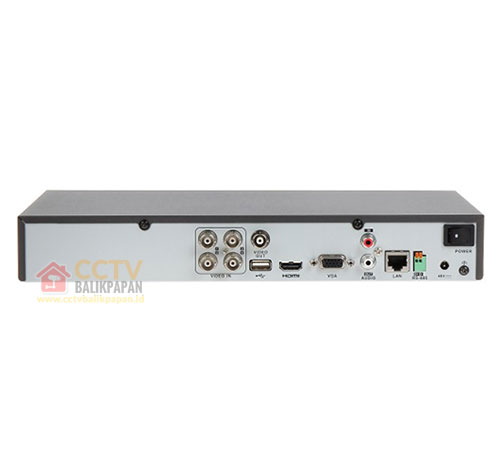

DVR HIKVISION 7204HQHI-K1/P 4 CHANNEL

Rp 2,540,000

Turbo HD DVR

Self-adaptive normal camera and Hikvision PoC camera connection H.265 Pro /H.265 Pro/H.265/H.264 /H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Connectable to H.265 /H.265/H.264 /H.264 IP cameras Up to 4 MP lite resolution for recording Automatic power supply management for PoC camera to guarantee safety Long distance transmission over UTP and coaxial cable 4/8/16-ch synchronous playback

More about this item

Video/Audio Input
Audio Input:		4-ch
Video Compression:		H.265 Pro /H.265 Pro/H.265/H.264 /H.264
Analog and HD-TVI video input:		4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2 of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P.. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input Supports Hikvision PoC camera Note: Do not unplug or plug the PoC camera if it is powered by the external power supply
IP Video Input:		up to 6-ch
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
IP Video Input Resolution:		Up to 6 MP resolution
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output
CVBS Output:		1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-6 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Synchronous Playback:		4-ch

Network management
Remote connections:		32
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 10 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces
Serial Interface:		1; standard RS-485 serial interface, half-duplex

General
Power Supply:		48 VDC
Consumption:		≤ 40W(without hard disks)
Working Temperature:		-10 oC to 55 oC (14 oF to 131 oF)
Working Humidity:		10% to 90%
Dimensions:		315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight:		≤ 1.16 kg (2.6 lb)
