Product code: N/A

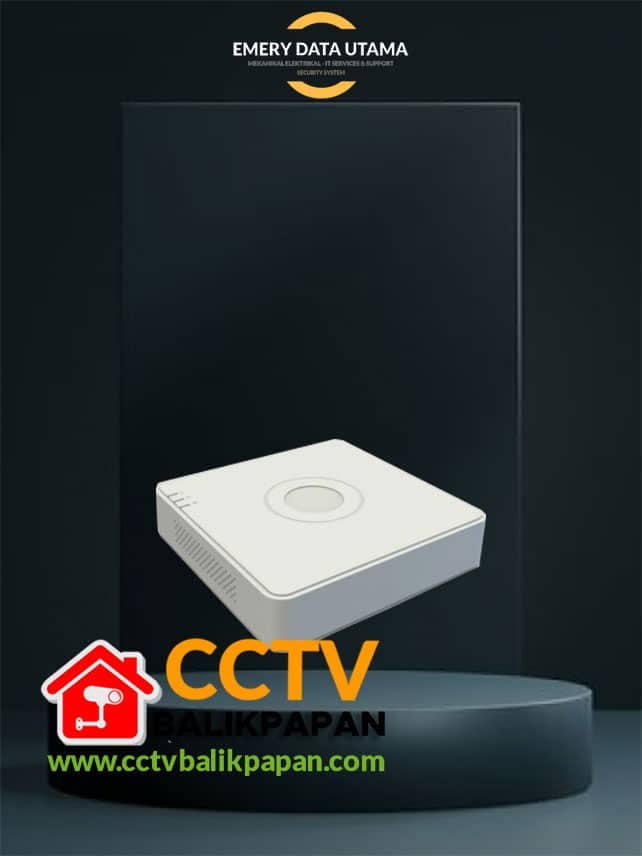

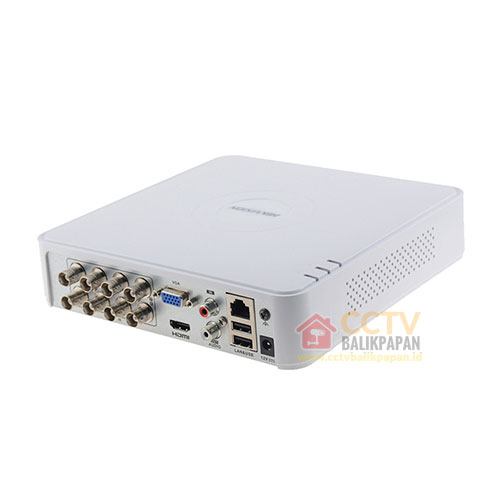

DVR HIKVISION 7108HGHI-F1/N 8 CHANNEL

Rp 1,200,000

Turbo HD DVR

Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p VQD (Video Quality Diagnostics) Unlock pattern for device login for the admin and clear-text password available GUID file can be exported for password resetting and imported for finding the forgotten password Supports PTZ control via Omnicast VMS of Genetec protocol Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management One self-adaptive 10/100 Mbps network interface Output bandwidth limit configurable

More about this item

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.264,H.264
Analog and HD-TVI video input:		8-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types:		Support HDTVI input: 1080p/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, Support AHD input: 1080p/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps ~ 4 Mbps
Stream Type:		Video/Video&Audio
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:		8-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces

General
Power Supply:		12V DC
Consumption:		≤ 12W(Without hard disks)
Working Temperature:		-10 oC ~ 55 oC (14 oF ~ 131 oF)
Working Humidity:		10% ~ 90%
Dimensions:		200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch)
Weight:		≤ 0.8 kg / 1.8 lb(without hard disks)
