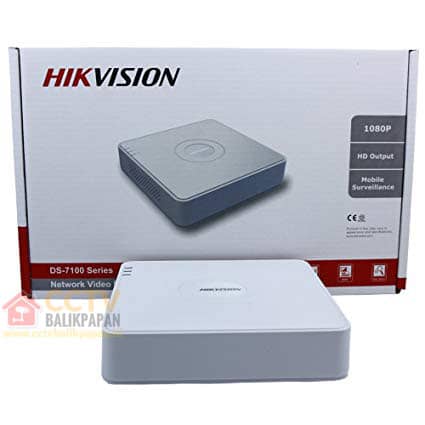

DVR HIKVISION 7104HGHI-F1 4 CHANEL

Rp 940,000

White Turbo HD

H.264 & Dual-stream video compression Long transmission distance over coax cable HDMI and VGA output at up to 1920×1080P resolution Support 4/8/16-ch synchronous playback at 720P resolution Support both HD-TVI /analog and AHD cameras with adaptive access

Pesan

More about this item

Spesifikasi : Video/Audio Input
  • Audio Input : 1-ch
  • Video Compression : H.264,H.264
  • Analog and HD-TVI video input : 4-ch BNC interface (1.0Vp-p, 75 ?)
  • Supported camera types : Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
  • Support AHD input : 720P/25Hz, 720P/30Hz,
support CVBS input
  • Video Input Interface : BNC (1.0 Vp-p, 75?)
  • Audio Compression : G.711u
  • Audio Input Interface : RCA (2.0 Vp-p, 1 k?)
  • Two-way Audio : 1-ch, RCA (2.0 Vp-p, 1 K?) (using audio input)
Video/Audio Output
  • HDMI/VGA Output : 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
  • Recording resolution : When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF, When 1080p Lite
  • mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream: When 1080p Lite mode not enabled:
  • For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), When 1080p Lite mode enabled:1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  • Video Bit Rate : 32 Kbps ~ 4 Mbps
  • Stream Type : Video/Video&Audio
  • Audio Output : 1-ch RCA(Linear, 1k?)
  • Audio Bit Rate : 64kbps
  • Dual Stream : Support
  • Playback Resolution : 1080p lite/720p/WD1/4CIF/VGA/CIF
  • Synchronous Playback : 4-ch
Network management
  • Remote connections : 32
  • Network protocols : TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Hard Disk Driver
  • Interface Type : 1 SATA Interface
  • Capacity : Up to 6 TB capacity for each disk
External Interface
  • Network Interface : 1; 10M / 100M self-adaptive Etherne interface
  • USB Interface : 2 USB 2.0 Interfaces
General
  • Power Supply : 12V DC
  • Consumption : ? 8W
  • Working Temperature : -10 ºC ~ 55 ºC (14 ºF ~ 131 ºF)
  • Working Humidity : 10% ~ 90%
  • Dimensions : 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch)
  • Weight : ? 0.8 kg / 1.8 lb(without hard disks)
    Lihat juga : https://cctvbalikpapan.com/produk/dvr-hikvision-7108hghi-f1-8-channel/
